AxiomPlus7RV100

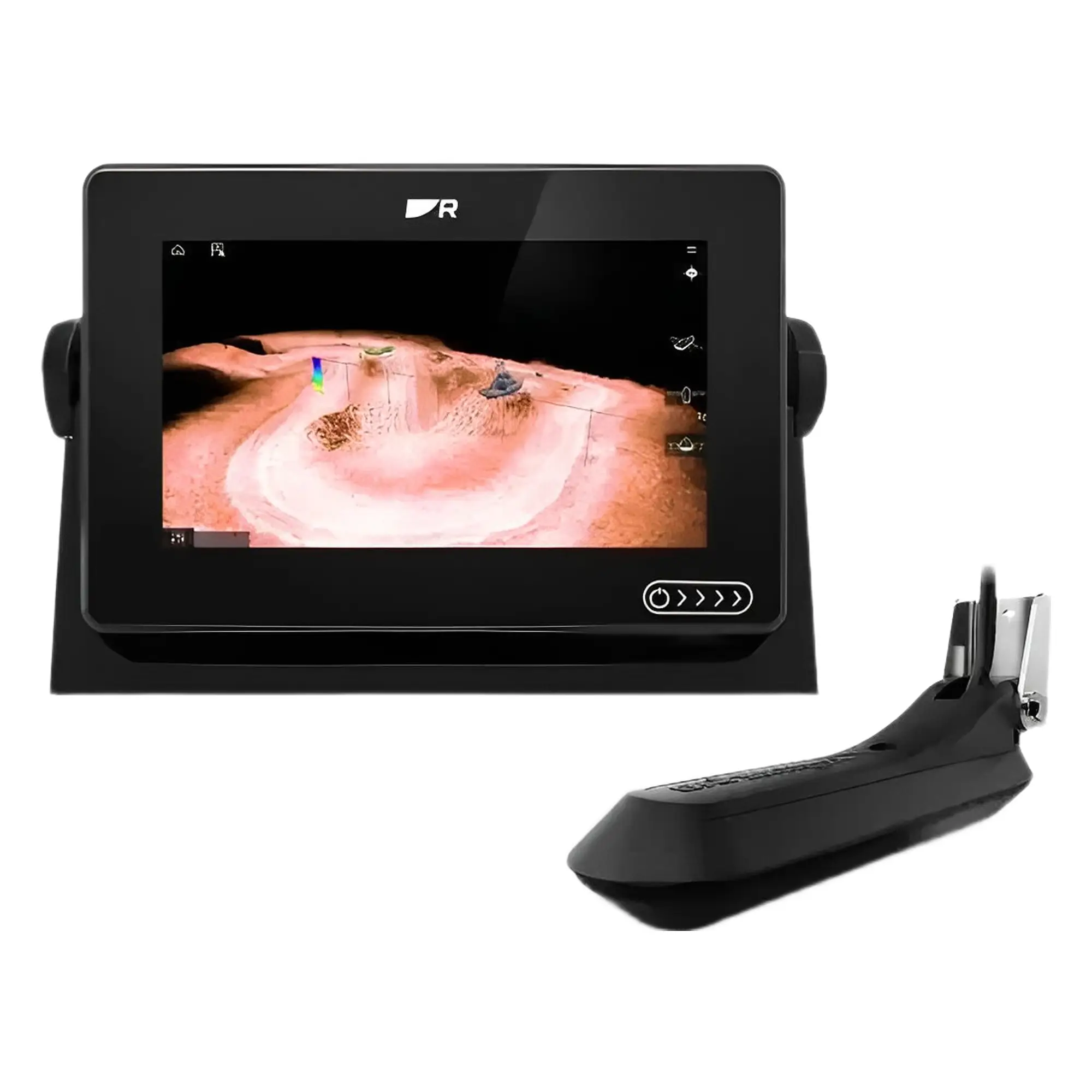

AXIOM+ 7 RV, Multi-function 7″ Display with integrated RealVision 3D,600W Sonar with RV-100 transducer

Algne hind oli: 1702,00 €.Current price is: 1650,00 €.

Uus 7″ ekraaniga kõik ühes AXIOM+ 7 RV kaardiplotter-kalaleidja koos RV-100 RealVision 3D ahtrianduriga. Seadmel on ka eesti- ja venekeelne menüü. AXIOM+ seeria on varustatud päikese käes hästi loetava puutetundliku ekraaniga. AXIOM+ seerial nupud puuduvad. Vajaduse korral saab lisada eraldi RMK-10 nuppude paneeli, välise kaardilugeja ja muud lisaseadmed. Seadmesse on integreeritud 10Hz GLONASS GPS, Bluetooth, WiFi ja RealVision 3D sonar. AXIOM+ seerial on RayNet ja NMEA2000 liidesed. Tarkvara on kõikidel AXIOM seeria plotteritel LightHouse III ja seadmetes saab kasutada Raymarine LightHouse NC2, Navionics, C-MAP Essentials ja C-MAP 4D MAX+ elektroonilisi merekaarte.

Soovid nõu?

Võta meiega ühendust!

Toodete tarne:

3-5 tööpäeva

Kirjeldus

Vaata AXIOM seeria kaardiplotterite ja kalaleidjate tootetutvustust.

RAYMARINE AXIOM+
HydroTough™ display, more memory, faster processor

Featuring the new Lighthouse Dartmouth operating system and a blazing fast quad-core processor, as well as a large integrated memory, this multifunctional display boasts outstanding performance. Furthermore, like its predecessors, the AXIOM+ is expandable so its capabilities can grow as needed.

The new HydroTough™ display is significantly brighter than previous models and can be operated quickly and precisely under any conditions.

HydroTough™ display

The AXIOM+ series HydroTough™ IPS LCD display is 25% brighter than displays in previous series. Furthermore, the display is greater impact resistance and thanks to its nano coating, water and dirt simply rolls off. This allows the Raymarine AXIOM+ multifunction display.to be used precisely and quickly under all conditions.

Lightning-fast performance at the touch of a finger

Clear app icons make orientation easier, a simple swipe across the multifunctional display activates the sidebar with the data display.
Using drag and drop, the data fields can be positioned anywhere on the screen in different sizes.
The homepage with the user profile and personal configuration can be saved permanently on the device. With just a few finger touches you can take control via touchscreen.

The chart plotter can also be adapted to individual requirements. Clear menus also provide quick access to the various chart modes.
Simply placing the tip of your finger on the chart is enough to position the cursor.


New LightHouse Dartmouth operating system

Thanks to the new Raymarine LightHouse Dartmouth operating system, various colour settings can be selected to give you the best view by day or night.

In addition, numerous improvements in the dashboard view ensure that you always have an overview of all relevant data
Network & Connection

The AXIOM devices are equipped with NMEA0183, NMEA2000 and ethernet interfaces.
The devices also feature a microUSB port, integrated WiFi and Bluetooth.

Raymarine AXIOM 7

The best charts

Raymarine’s multifunction devices allow you to choose between charts from Navionics, C-Map and an extended Lighthouse chart selection.
The detailed grid and vector charts make coastal navigation very easy
and also contain options for 3D charts and satellite support.

Integrated RealVision 3D sonar module

Raymarine AXIOM 7

The integrated RealVision 3D sonar module combines CHIRP DownVision, CHIRP SideVision, high-frequency CHIRP and RealVision 3D in one unit.
Easily detect underwater structures and easily find your target fish thanks to the lifelike clarity of the RealVision 3D sonar.
The broad spectrum CHIRP transmits 60 different frequencies to enable incredibly close-to-life sonar images and a superior fishing experience.
Matching RV-100 transom transducer is included in the delivery.
Technical data:
Display size 7″
Resolution 1024 x 600
Display type Multitouch with HydroTough (resistant coating)
Brightness 1500 nits
Viewing angle 85° top, bottom, left, right
Voltage 12 V DC (8 – 16 V DC)
Power consumption 9.84 W
Ethernet Yes, 1x port (RayNet)
NMEA2000 Yes, 1x port (Micro C)
NMEA0183 No
SeaTalkNG Adapter cable necessary (included in delivery)
USB 1x USB mircoAB
WiFi Yes
Bluetooth Yes 4.0
GPS Integrated (10 Hz, 28 channel)
GPS/GLONASS/Galileo/Beidou
Sonar Integrated
Sonar types High CHIRP, DownVision, SideVision and RealVision 3D
Sonar connection 25 pin
Radar Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS Yes, via NMEA2000
Chart compatibility Navionics, C-MAP and Lighthouse
Card slot 1x
Autopilot operation Evolution autopilot
Thermal image FLIR AX8, M232, M300 series, M400, M500
Video/camera Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Operating temperature -25 to +55 °C
Storage temperature -30 to +70 °C
Waterproof IPX6 / IPX7
Dimensions 210 x 142 x 77 mm
Weight: 1.36 kg

 Axiom+ MFD paigaldusjuhend

 Axiom+ Front installation paigaldusjuhend

 Lighthouse 4.0 kasutusjuhend Inglise keeles

 Lighthouse 4.4.70 kasutusjuhend Inglise keeles
