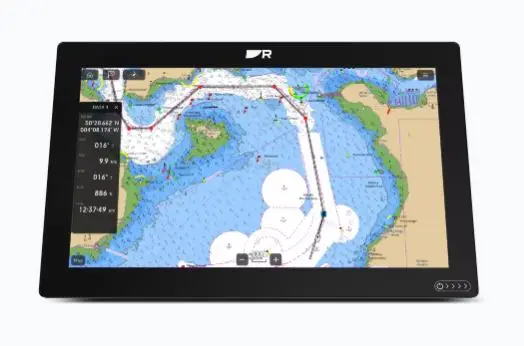

AXIOM2 XL 22- 21.5” Glass Bridge Multi-function Display

Kirjeldus

Premium Glass Bridge Chartplotter with Advanced Networking Support!

The Raymarine Axiom 2 XL provides powerful performance in a stylish large-format chartplotter. Designed for all weather use, the Axiom 2XL features an exclusive HydroTough nano-coated display that repels water and enhances sunlight viewability. A slim bezel allows the largest displays in the smallest footprints possible. The 22-inch touch display measures 21.5″ diagonal. Smart backlighting is provided by the Axiom2 XL’s ambient light sensor which automatically adjusts display brightness for day and night lighting conditions. Create your own glass bridge system with multiple Axiom2 XL displays!

Full Raymarine network support allows for the addition of compatible Raymarine network components including CP570 or RVM1600 sonar modules, Quantum 2 or Cyclone radars, thermal cameras, AIS, autopilot, weather modules and more! If you love the look of a touchscreen design, but the ease of keyed controls? Simply add a Raymarine RMK-10 remote keypad and take control of your Axiom2 XL.

The Axiom 2 XL’s LightHouse operating system is simple and easy-to-use while offering advanced features. Integrate all navigation, engine data and more on a single display for easy viewability. Built-in WiFi allows you to view and control your display on your phone or tablet with the Raymarine Mobile App. Support for third party apps means the options are limitless…watch shows from popular streaming services, stream music and more!

• • Display Resolution: 1920 x 1080 Pixels
  • Display Size (Diagonal): 21.5″, IPS Display
  • GPS Antenna Connection: TNC Type Connector
  • HDMI Connections: HDMI In, HDMI Out
  • Ethernet Connection: PoE RayNet (3 Ethernet Ports)
  • Audio Output: Left and Right RCA Connectors via Power/Video/Audio Cable
  • Analog Video Connections: Composite BNC connectors x 2 (Alarm/Video 1 Connector, Power/Data/Video Cable Video 2)
  • NMEA 2000: DeviceNet Connector
  • Wireless Connections: Bluetooth
  • Internal Storage: 64GB
  • Power Consumption @ 12V DC: 76.56W
  • Power Consumption @ 24V DC: 71.53W

What’s the difference in the Axiom 2 XL and Axiom XL? The Axiom 2 XL series includes a faster processor than the previous Axiom XL and all new HydroTough display, audio out and autodimming features.
