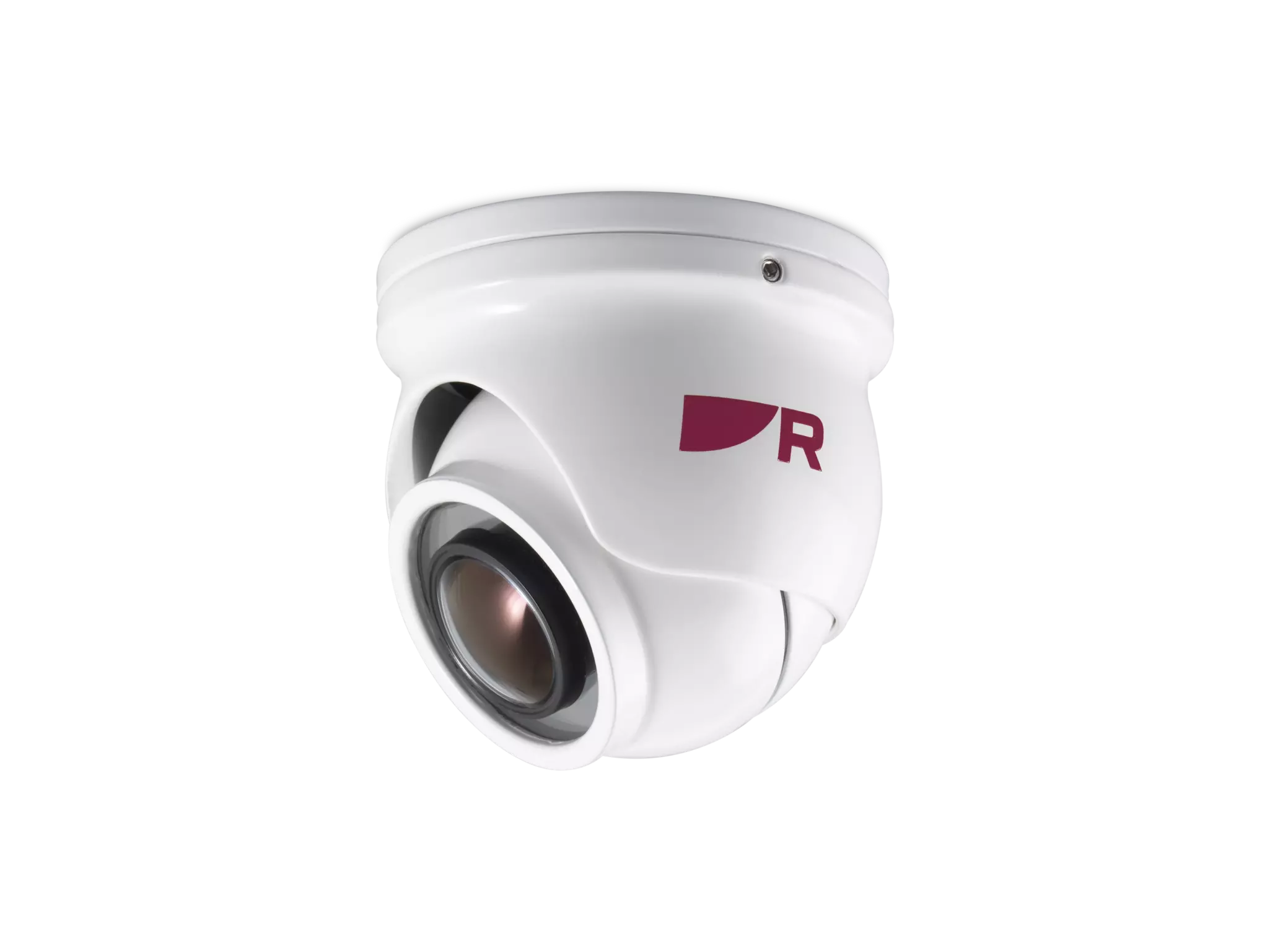

CRYSTAL CLEAR, ULTRA-WIDE FIELD OF VIEW (160° HFOV x 130° VFOV) The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints, and chart objects on the Axiom video display.
Võta meiega ühendust!
3-5 tööpäeva
CRYSTAL CLEAR, ULTRA-WIDE FIELD OF VIEW (160° HFOV x 130° VFOV)
The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints, and chart objects on the Axiom video display.
• Crystal clear HD video imagery
• View up to 4 CAM300 video streams simultaneously on a single Axiom display
• 3MP CMOS sensor delivers up to 1080p resolution
• Built-in infrared emitters for excellent near-field low-light visibility up to 33 ft (10 meters)
• Ultra-compact size blends seamlessly with your vessel.
• Image flip and invert functions for ball-up/ball-down installation and reverse video system applications.
• Flexible mounting solutions as the entire camera ball rotates in the housing
• Easy to install with either a direct 12-volt connection or single cable Power over Ethernet (POE)
• Rugged IP66 enclosure for below and above-deck marine installations
• Navigate smarter with ClearCruise™ augmented reality and the optional AR200 sensor
• ONVIF Profile S compatible for integration with 3rd party security systems
| CONFORMANCE | |
| Product markings | UKCA, RoHS, CE, Australian RCM C-Tick |
| Standards | RoHS II 2011/65/EU, Japan / China: ABS/CCS IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), EMC Directive 2014/30/EU, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002, FCC Part 15.19, FCC Part 15.105 (b), ISEDC ICES-003 |
| VIDEO | |
| Day / Night | True day / night operation with mechanical IR cutout filter |
| Automatic Gain Control | Supported / Multiple Levels |
| Scanning system | Progressive scan |
| Mirroring | Horizontal & Vertical |
| Video Processing | H.264 Codec / Dual Stream |
| Bit Rate Control | Capped Bit Rate / Variable Bit Rate |
| Compression | H.264 |
| Illumination | 6 x 850nm Infrared – 10 meter range |
| Frame Rate | 25 fps |
| ONVIF version | 21.06 master version |
| Sensor / DSP | 1/4″ CMOS Sensor |
| Field of View | 1.8mm Standard (160° HFOV x 130° VFOV) |
| POWER | |
| Power over Ethernet | PoE Class 1 (1.8 W Max) device (IEEE802.3af) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| Power consumption | 1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON) |
| Current | < 150 mA (Maximum) @ 12 V dc |
| ENVIRONMENTAL | |
| Relative humidity | Max. 85% |
| Waterproof rating | IP66 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +65 °C (-4 °F to 149 °F) |
| PHYSICAL | |
| Dimensions | Base diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in) |
| Weight | 0.420 kg (0.926 lbs) |
