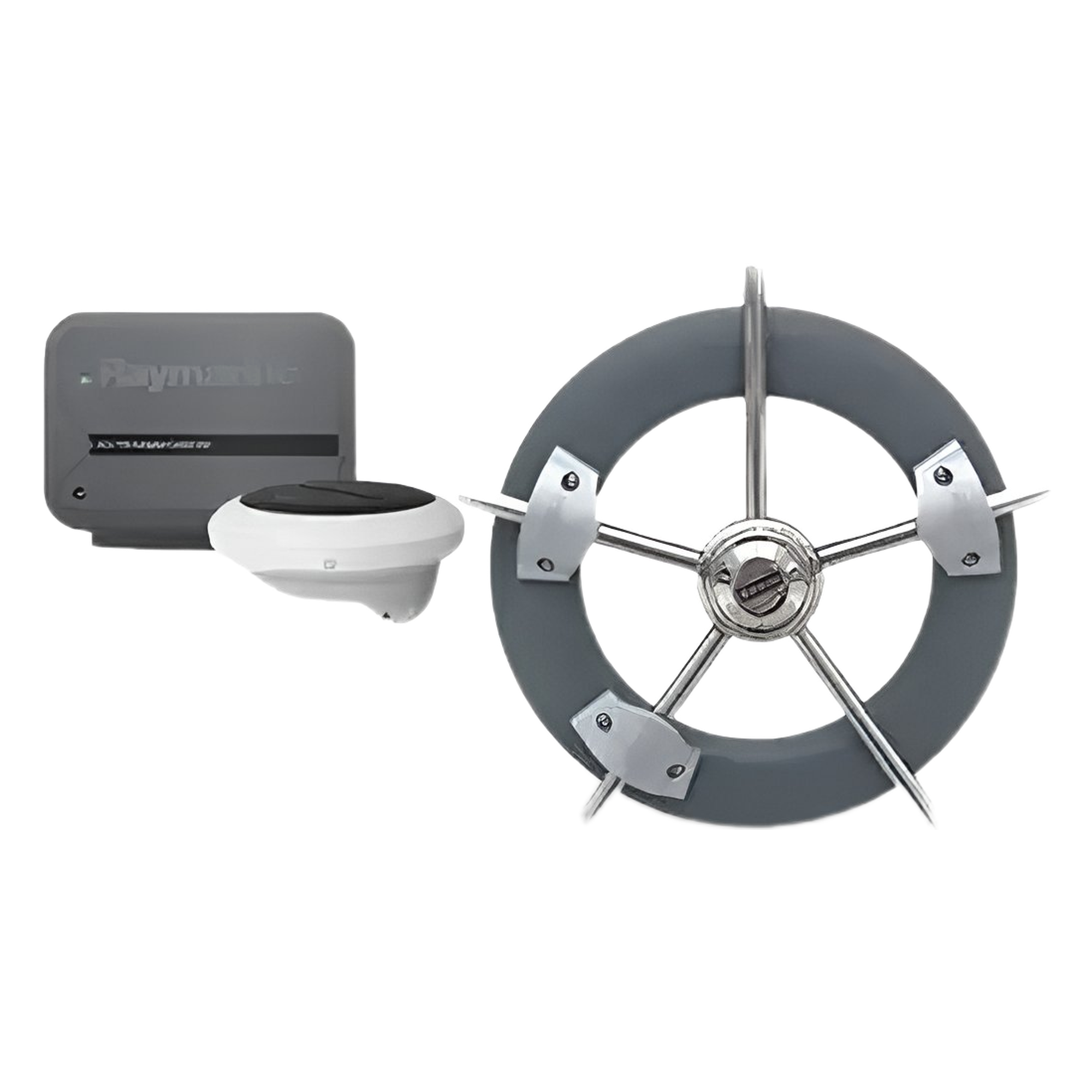

EV-100 Roolipiloot purjepaadile ilma p70s kontrollerita

Kirjeldus

Vaata Raymarine autopilootide tootetutvustust.

EV1 Sensor Core

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.

SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-100

With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats, runabouts and smaller cruising yachts.

Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.

As a true world-first innovation, the ACU-100 is fully sealed so may be mounted above decks on boats where space is limited.

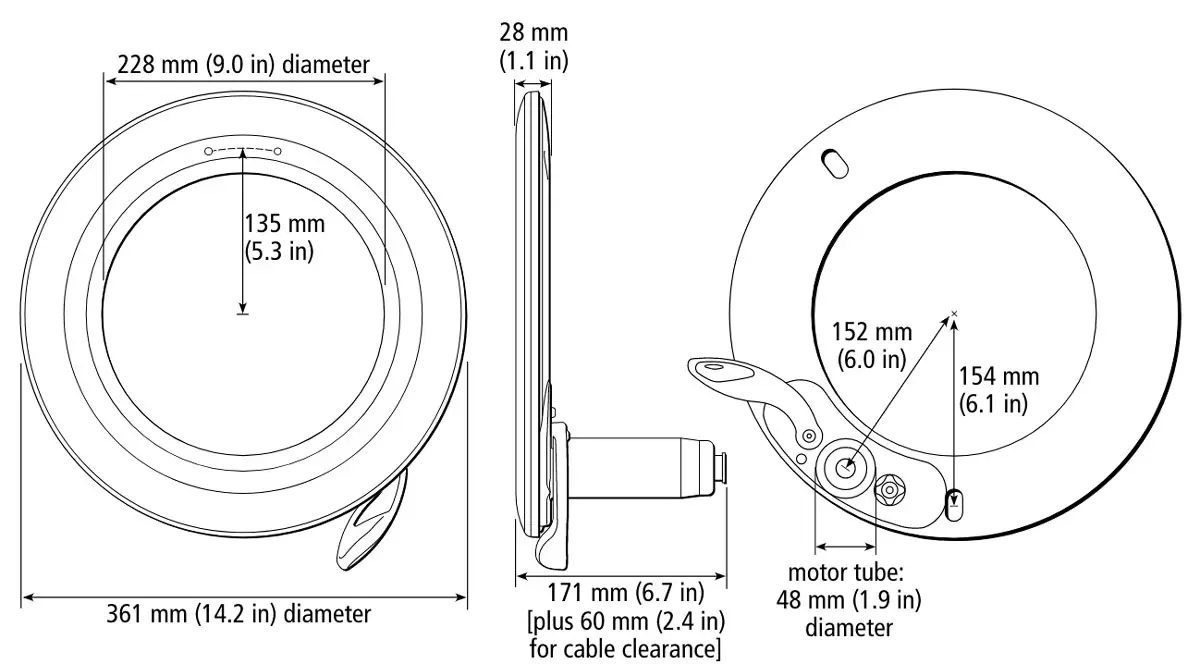

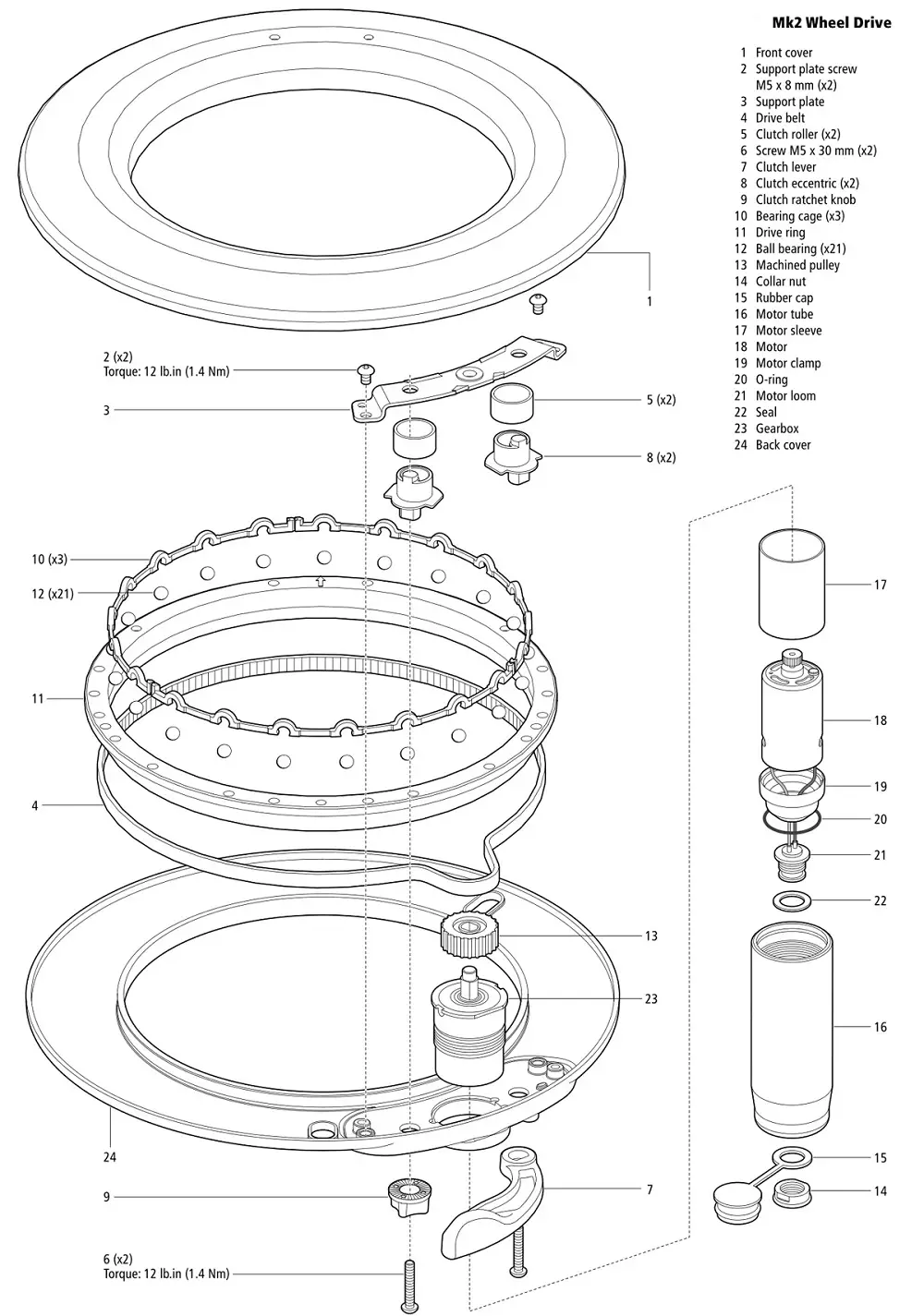

Wheel Drive

The EV-100 wheel pilot comprises a fully enclosed wheel-drive for simple installation and superb autopilot performance.

• Quick and easy installation
• Fits most types of wheel
• Simple robust clutch engagement mechanism.

Specifications

Maximum recommended laden boat displacement: 7,500kg (16,500lbs)

Revs per minute (rpm): 9

Thrust: 30Nm

Connections: STng (x1), NMEA 2000 with adapter cable

Evolution Cabling Kit – R70160

The Evolution SeaTalkng cable kit contains
