i50 Tridata ja i60 Wind Pack

Raymarine i50 Tridata ja i60 Wind komplekt

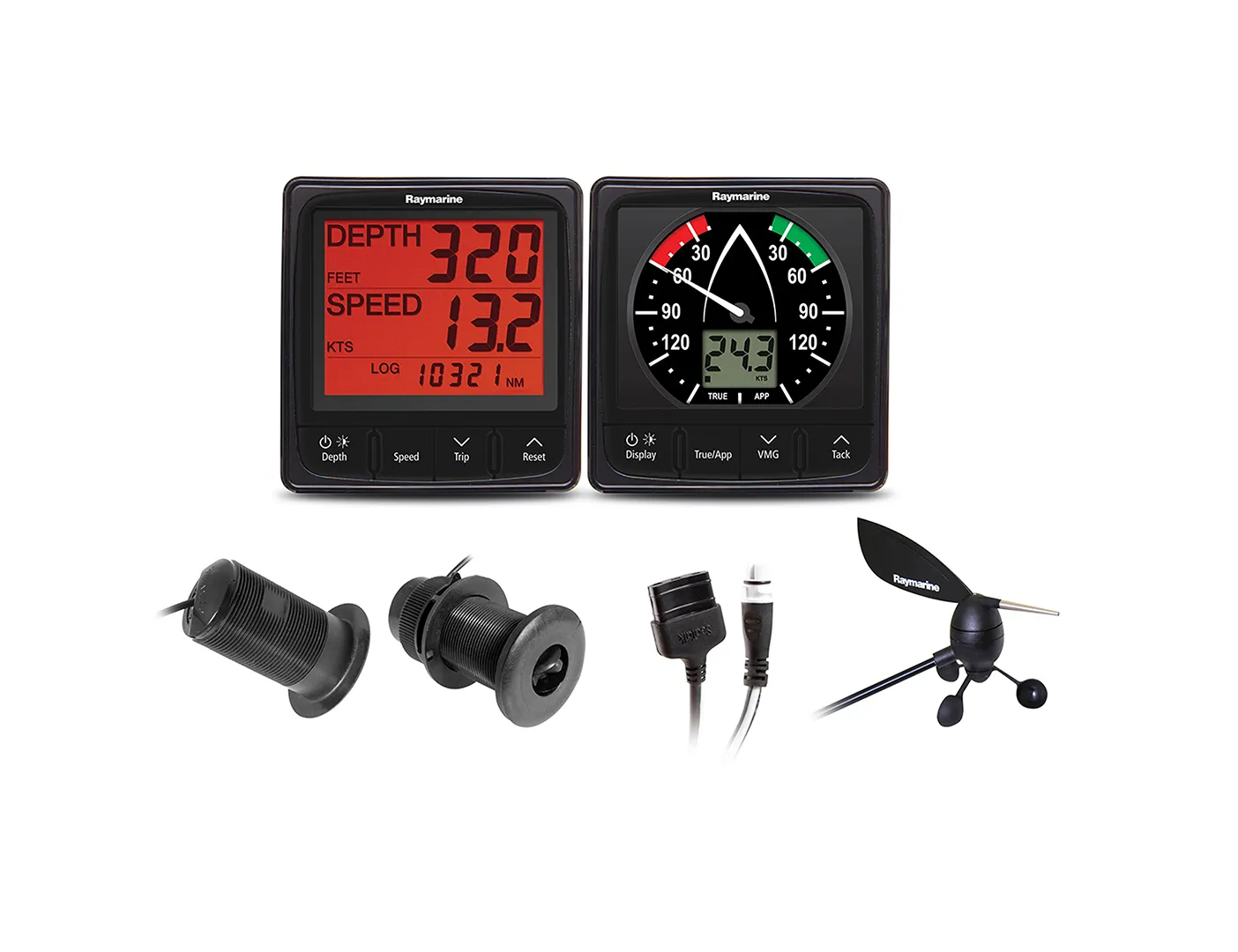

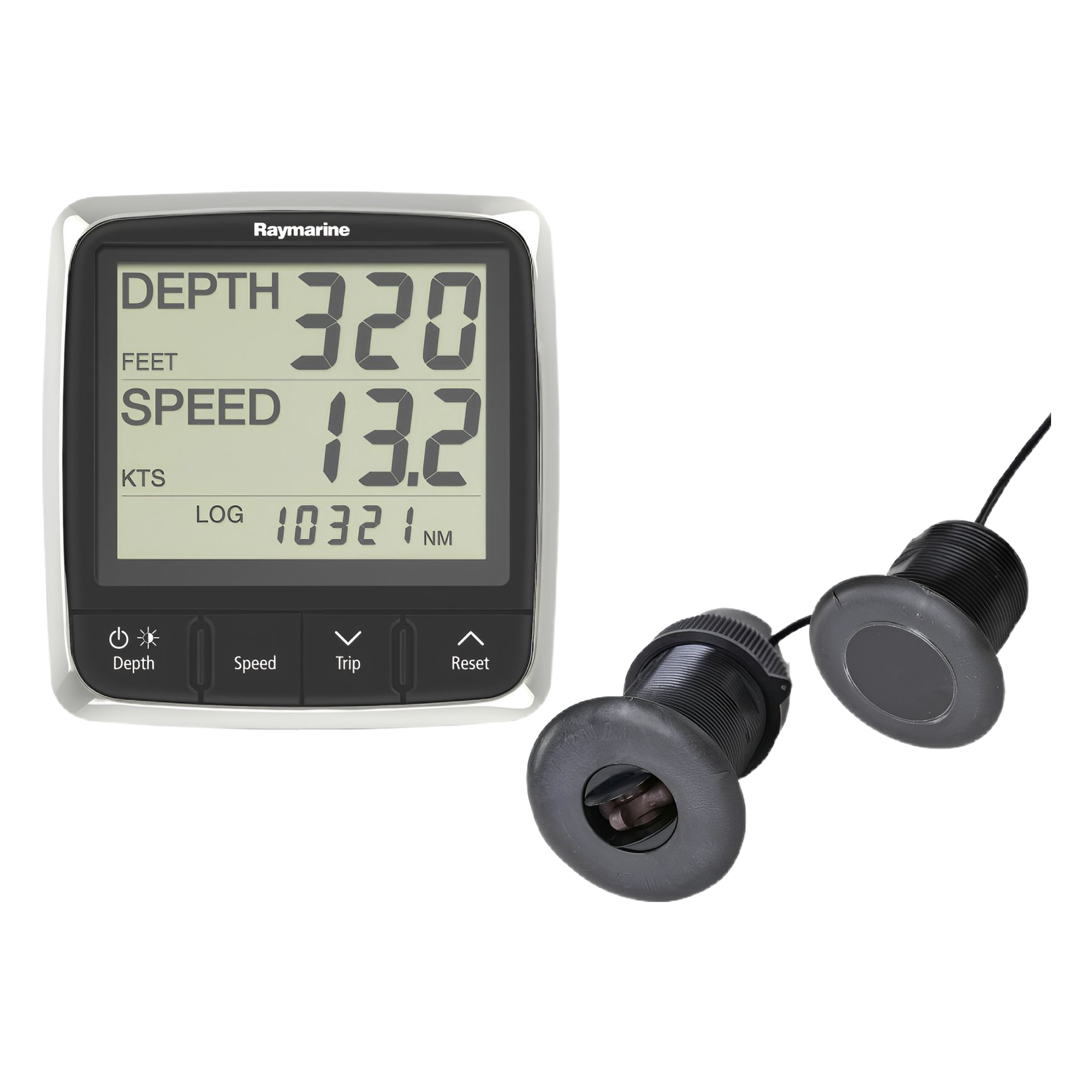

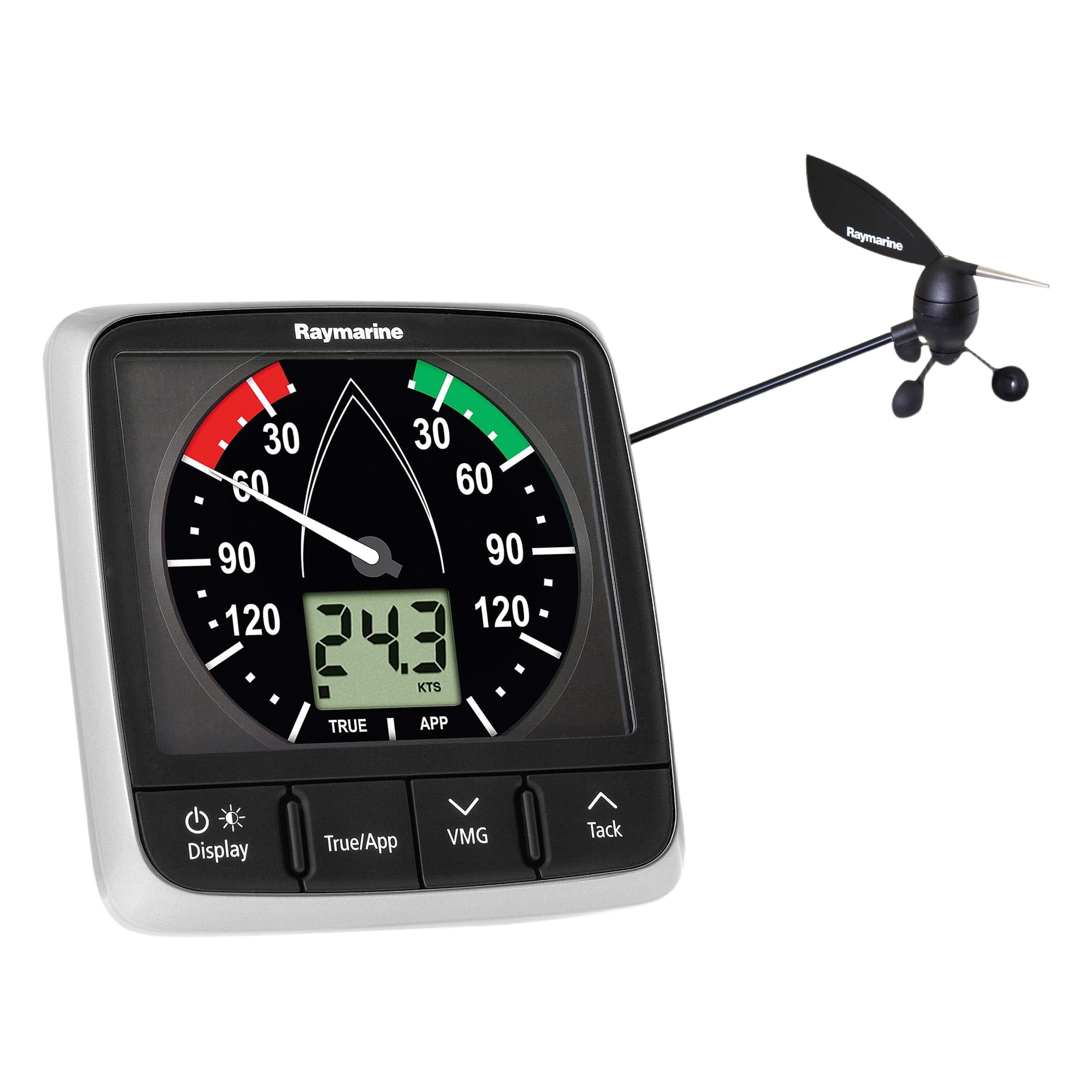

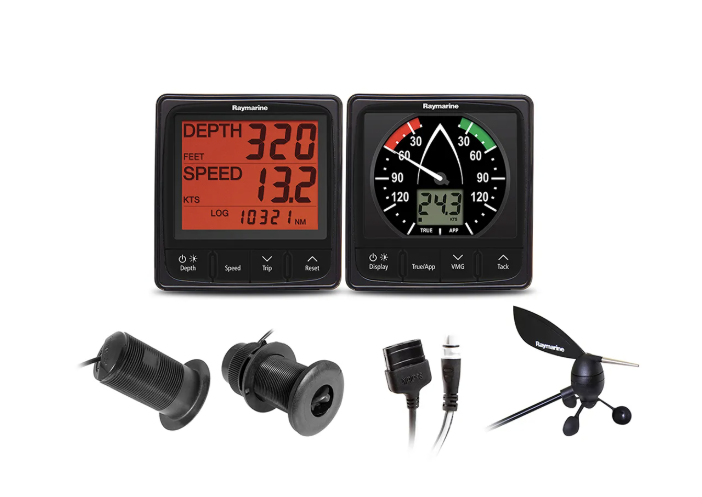

Raymarine i50 Tridata ja i60 tuulekomplekt sisaldab kõike vajalikku tuule-, kiiruse-, sügavuse- ja temperatuuri süsteemi loomiseks. Komplekti keskmes on i50 ja i60 instrumendid mis kuvavad andmeid selgelt ja täpselt. Komplektis olev lühikese varrega Wind Vane tuuleandur ühendub komplekti kuuluva 30-meetrise mastikaabliga. Lisaks sisaldub kiirus-, sügavus- ja temperatuurinäitude jaoks P120 ja P319 analoogväljundiga andurid, mis paigaldatakse läbi põhja ja soovitatavalt kiilu ette.

Main Features:

Large dials
Red backlighting for better visibility
SeaTalk and SeaTalk^ng connections
NMEA2000 (compatible) connections
Transducer port
30 metre mast cable
110 mm x 115 mm – the same dimensions as the Raymarine ST60 + instrument series
Low power consumption
Supports multiple data sources, thus eliminating potential data loops
Front mounting for easy installation
Delivered with black and grey frame

Specifications

Nominal voltage	12V DC
Voltage range	10-16V DC
Power consumption	Typical <1W (display only) and 2.4W with transducer connected
Power consumption	45 to 65mA (only display) and 200mA with transducer connected
Operating temperature	-20°C bis + 55°C
Storage temperature	-30°C to +70°C
Relative humidity	up to 93%
Water rating	IPX6
Connections	2x SeaTalk^ng and transducer (E70061 only)
Compliance	Europe 2004/108/EC
Included	i60 instrument, front panel, SeaTalk^ng drop cable, masthead unit, 30 metre mast cable, seal, cover, documentation, SeaTalk^ng dummy cap, 4x screws
