Raymarine RMK-10 Remote gS, Axiom+ ja Axiom XL seeriale mõeldud klaviatuur ühildub ka kõikide vanemate a, c, e ja eS seeria kaardiplotteritega. Ühendus plotteriga käib läbi RayNet kaabli, 2m kaabel on komplektis kaasas. Paigaldada saab klaviatuuri vertikaalselt ja horisontaalselt, erineva paigutusega nupud on komplektis kaasas. Ühe klaviatuuriga saab kontrollida mitut seadet, nii saab tekitada olukorra kus näiteks laes on mitu kaardiplotterit ja istme käetoe sees on üks klaviatuur. RMK-10 on eriti hea lisa uuele Axiom+ ja Axiom XL seeriale millel endal nuppe pole.
Võta meiega ühendust!
3-5 tööpäeva
Vaata RMK-10 tootetutvustust

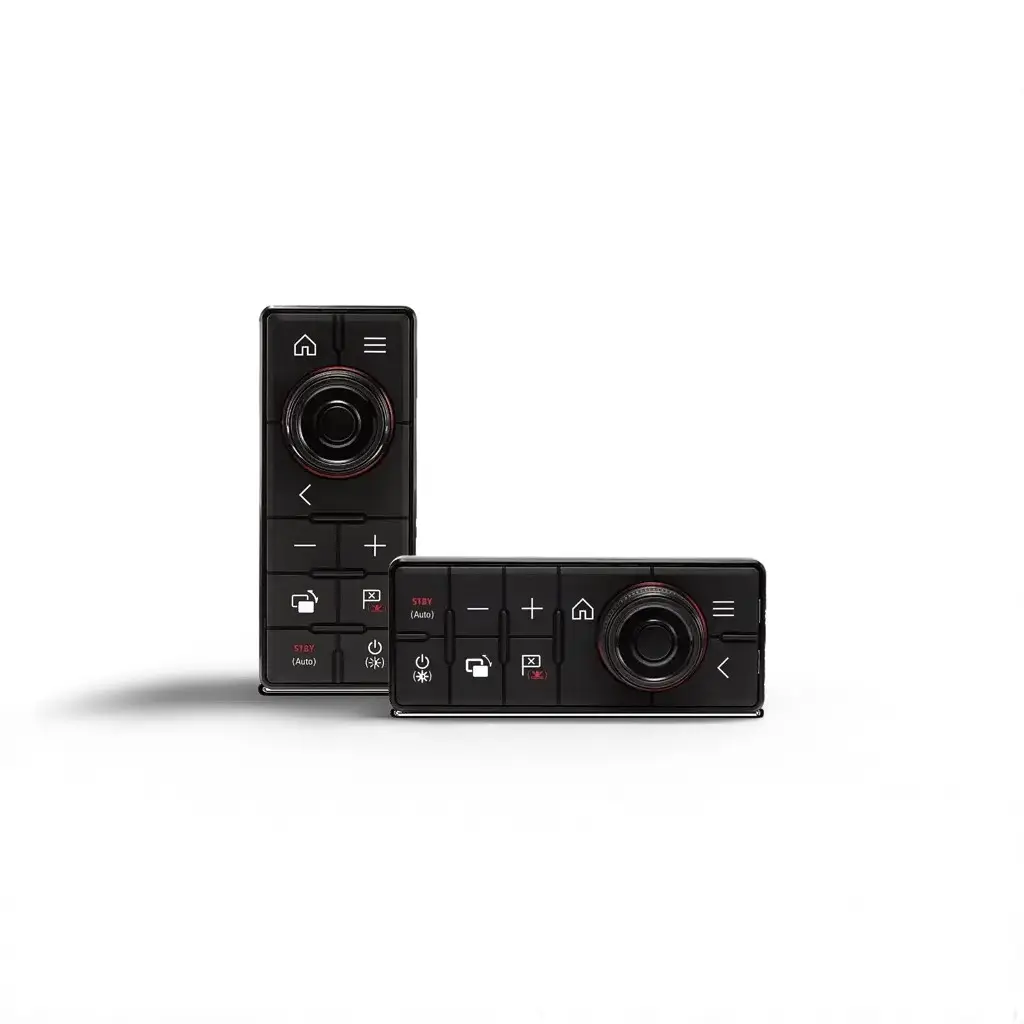

The RMK-10 integrates seamlessly with the LightHouse II user interface and LightHouse 3 user interface and allows the navigation system to be operated solely by touch, by keypad, or any variation between.
The fully backlit RMK-10 includes dedicated keys for home, menu, zoom in/out, window control, waypoint management, power/brightness, as well as Evolution autopilot control. RMK-10 also features the same multifunction rotary controller with the integrated cursor pad found on eS Series multifunction displays.
The RMK-10 can be surface-mounted or flush-mounted and comes with key mats for horizontal or vertical installation. This gives you the flexibility to install the RMK-10 just about anywhere.
The Raymarine RMK-10 is the perfect solution for controlling MFD’s mounted beyond arm’s reach, or in overhead electronics boxes. Instead of reaching for the MFD, the RMK-10 brings the system’s controls to you.
For the ultimate in convenience, mount the RMK-10 in the arm of your favorite helm chair. Now it’s easy to sit back, relax and enjoy the ride on autopilot, while still being able to interact with your navigation system.
| PoE class | Class 1 |
| Nominal supply voltage | 12 / 24 V dc |
| Operating voltage range | 10.8V dc to 31.2V dc |
| Power consumption | 3.84W |
Environmental |
|
| Operating temperature | -25ºC to +55ºC (-13ºF to 131ºF) |
| Storage temperature | -30ºC to +70ºC (-22ºF to 158ºF) |
| Relative humidity | Maximum 75% |
| Waterproof rating | IPX6 |
Wired Connections |
|
| Network / power | 1 x RayNet connector | (gS Series – 1000 Mb/s plus PoE) | (aSeries , cSeries, eSeries – 100 Mb/s) |
| Alternate power | 1 x power connector |
Raymarine RMK-10 MFD Keypad installation instruction
Raymarine RMK-10 MFD Keypad mounting templateRegistreeritud raymarine toodetel on garantii 3 aastat
