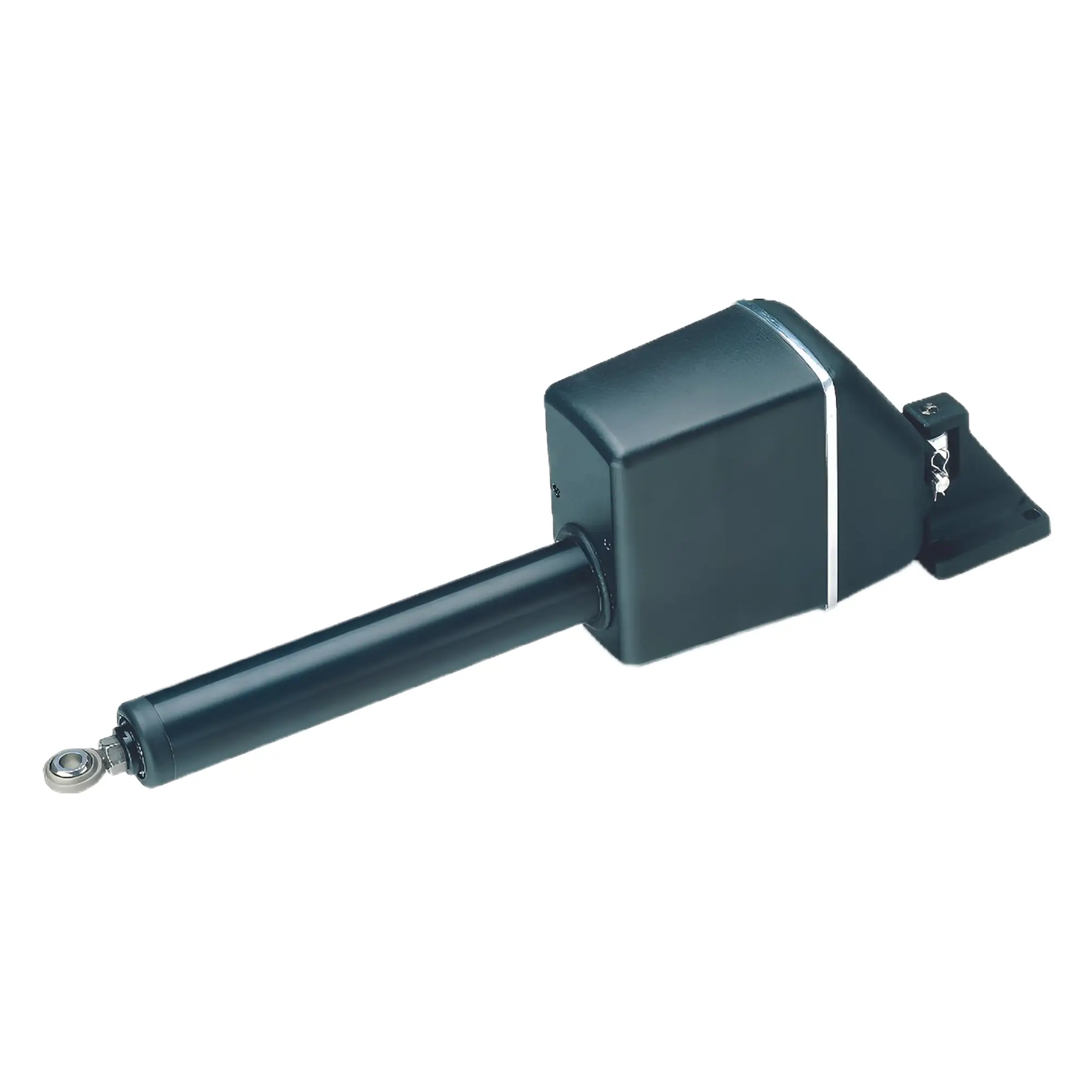

Raymarine Type 1 Linear Drive 12 V

Kirjeldus

Overview

Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation.

Features

• Low backdrive force, to minimize the drive’s effect on the boat’s steering when the autopilot is in standby.
• A powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox.
• High performance for minimum current consumption.

Specifications

• Peak thrust : 650lb (295kg)
• Power Consumption: 18-36 Watts average
• Maximum stroke: 12 in(300mm)
• Helm speed: Hardover to hardover time(+/- 35º, no load) 11 sec
• Maximum vessel displacement: 22,000lb (10,000 kg)
• Maximum rudder torque: 6,500 lb.in (735Nm)

Lae alla Linear Drive paigaldusjuhend
