Raymarine Type 2 Rotary Drive 12V

Kirjeldus

Overview

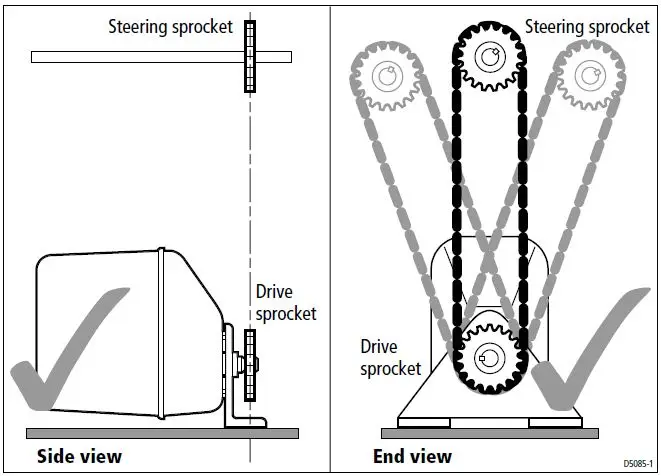

The Rotary drive is designed for steering systems that can be driven from the helm position through a chain and sprocket (for example: cable and rod steering systems).

The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot-controlled steering with quiet operation.

Features

• Rugged electric motor, that drives a precision epicyclic gearbox via a high tensile drive belt.
• Electromagnetic clutch that transmits high torque loads without slipping.

Specifications

• Maximum vessel displacement: 44,000 lb(20,000 kg)
• Peak output torque: 300 ln.in (34Nm)
• Maximum shaft speed: 33 rpm
• Recommended hardover to hardover time: 10 sec
• Power Consumption: 60-84 W (12 V) 72-120 W (24 V)

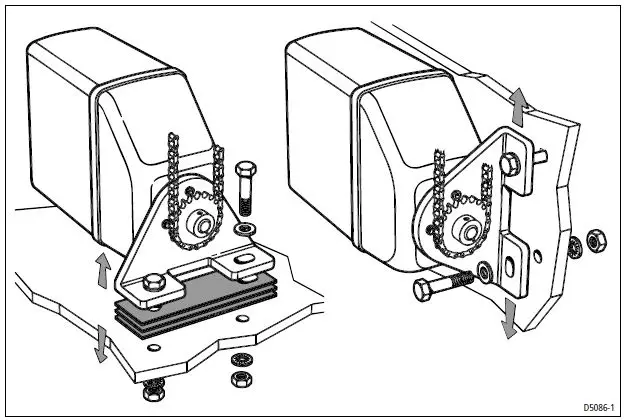

Lae alla Rotary Drive paigaldusjuhend
