SmartController Wireless Remote

Kirjeldus

Vaata Raymarine autopilootide tootetutvustust.

Overview

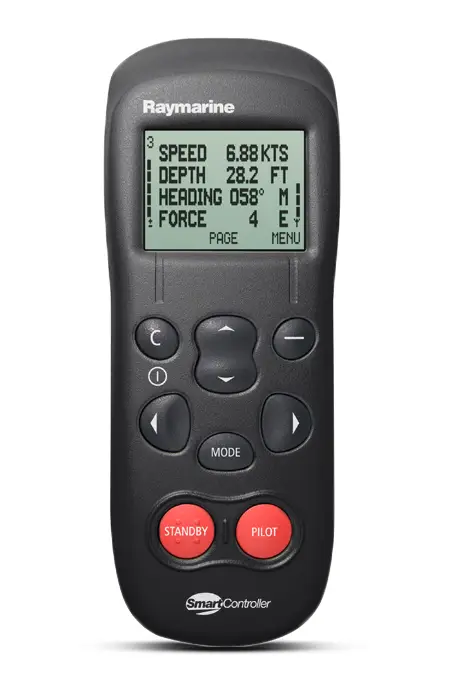

SmartController Wireless Remote & Base Station E15023

Take control of your Raymarine SeaTalk® network with the powerful SmartController wireless handheld remote. Set a new course to steer or monitor vital instrument and navigation data in the palm of your hand. Big on features, the waterproof SmartController is lightweight and compact for easy handling. The bright backlit display and ergonomic keypad offer straightforward operation with access to up to eight user defined data pages.

The SmartController features a rechargeable batteries that can be easily charged right from the SeaTalk® network power supply.

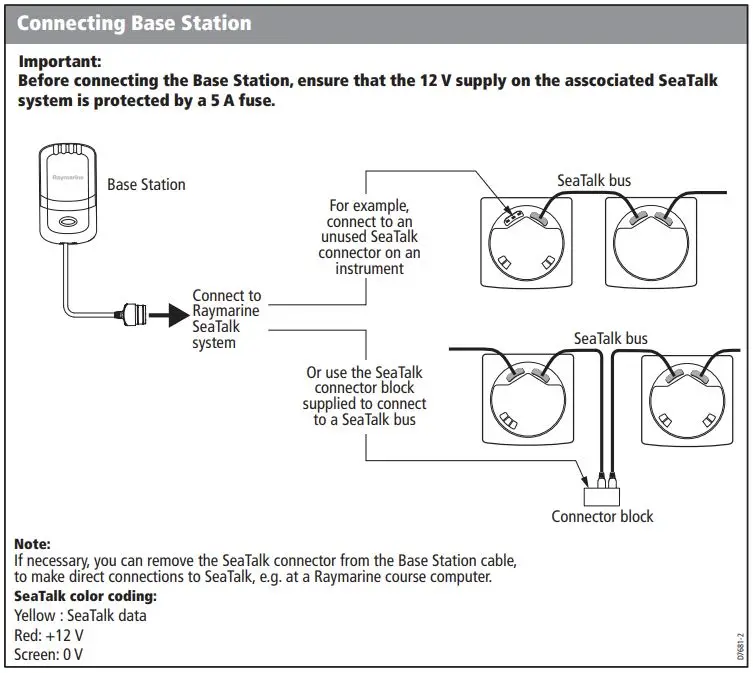

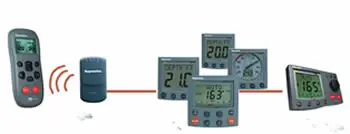

Upgrading your network to wireless is fast and easy thanks to SeaTalk networking. Simply connect the wireless base station into your existing SeaTalk network, and you’re done!

Features

SmartController Features

• A crisp, high contrast 64 x 127 dot matrix display
• Backlit display and keypad
• Up to eight user definable data pages
• Single, dual or four line data displays
• Graphical CDI (Course Deviation Indicator) display
• Raised profile on Standby button for easy identification in the dark
• Keylock security
• Rechargeable via SeaTalk® network
• Add additional base stations for extended range
• Add handsets for additional users and customize for each user

Wireless Features

• Up to 32 feet (10 meters) wireless operating range from the base station
• Signal strength indicator

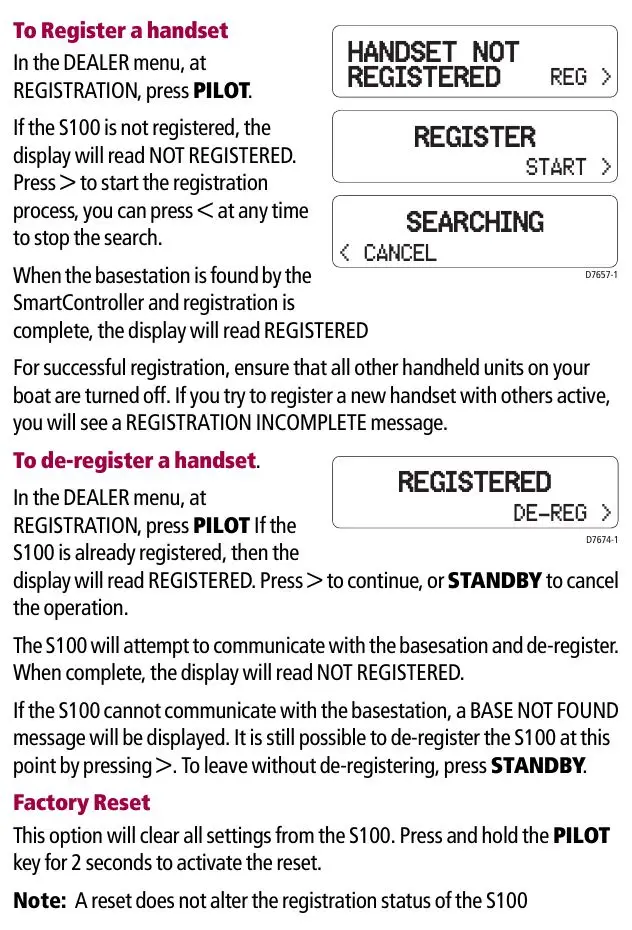

• Pre-registered – each unit leaves the factory already registered to the base station

Juhtmevaba Smart kontrollerit (E15023) saab integreerida peale vanade ST1000, ST2000, ST3000, ST4000, ST5000,
S1/S1G, S2/S2G, S3/S3G, SPX5, SPX10, SPX30, SPX SOL ka kõikide uute Evolution autopilootidega läbi SeaTalk1 to STNG konverteri.

Kui vajad ainult juhtmevaba Smart kontrolleri pulti või ainult baasjaama, siis tee rippmenüüs vastav valik, vaikimisi
on valitud toode: E15023 SmartController Wireless Remote & Base Station.

 Lae alla Wireless Remote paigaldusjuhend

 Lae alla Smart Controller Wireless remote kasutusjuhend
