EV-100 Pinnipiloot purjepaadile

Algne hind oli: 2189,90 €.Current price is: 2124,00 €.

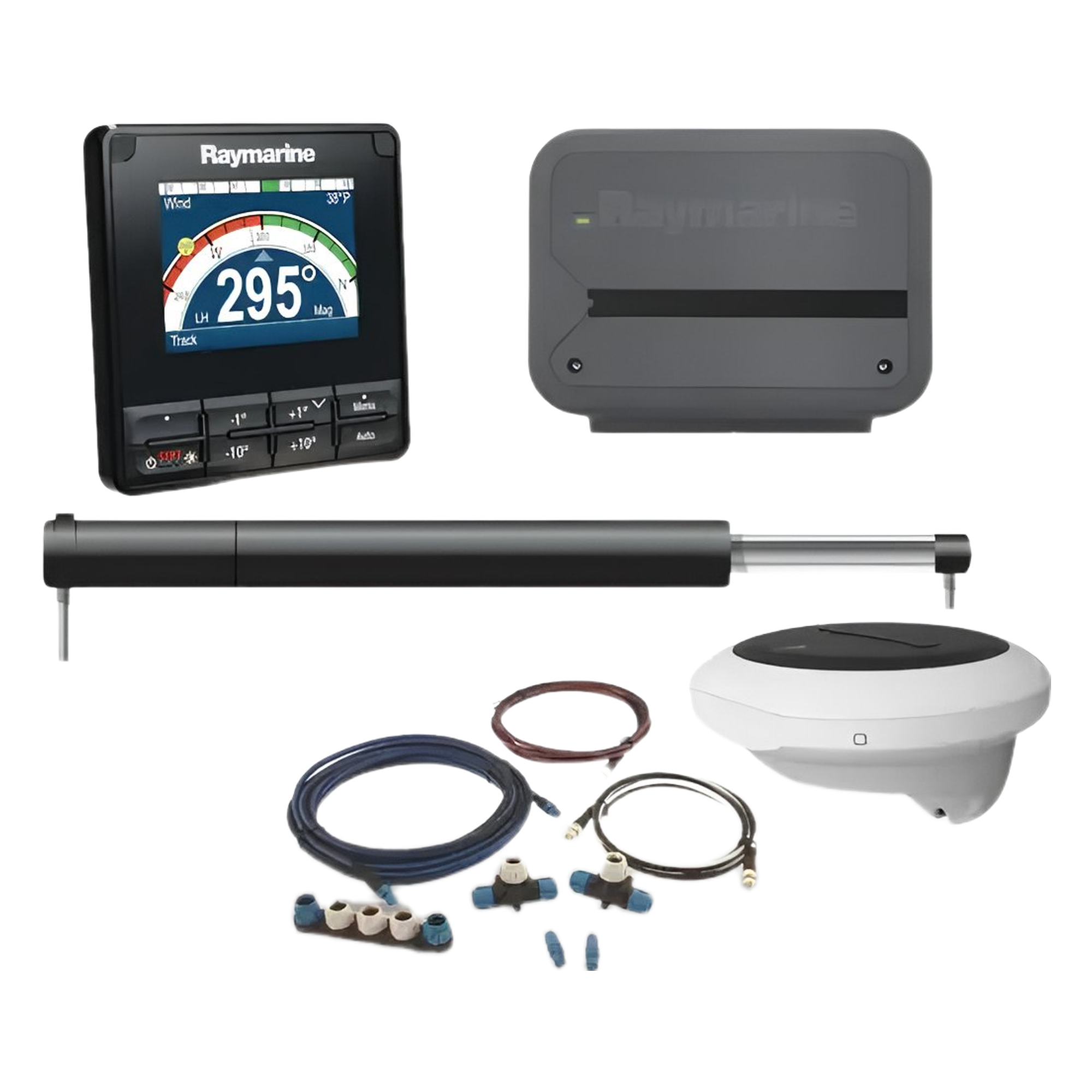

EV-100 pinnipilooti saab kasutada purjepaatides mida juhitakse roolipinniga. Pinnipiloot on mõeldud huvilaevadele mille kogukaal ei ületa 6000 kg. Soovitatav on jätta 20% varu. Piloot koosneb spetsiaalselt purjepaadi roolipinni jaoks disainitud pinniajamist Q047, p70s nuppudega kontrollseadmest, uuest üheksateljelisest EV-1 sensorist ja ACU-100 aktuaatori juhtimisseadmest. Komplektis on ka elementaarne STNG kaablite stardikomplekt. See piloot sõidab täpselt nii nagu suured piloodid, kompuutriks on üheksa sensoriga EV-1. Sellel tootel on üks asi teisiti kui suurtel pilootidel mida pole näha ega kuulda. Ajam tuleb enne sõidu alustamist ise pinni külge panna ja kui on vaja käsitsi juhtida siis jälle maha võtta. Kõik komponendid on ühendatud STNG (NMEA2000) võrku ja teiste tänapäevaste navigatsiooniseadmetega integreerimine on lihtne.

Soovid nõu?

Võta meiega ühendust!

Toodete tarne:

3-5 tööpäeva

Kirjeldus

EV1 Sensor Core

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.

SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

Find out more about the Evolution autopilot

Evolution EV1 Sensor Core | Raymarine

ACU-100



With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats, runabouts, and smaller cruising yachts.



Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.

As a true world-first innovation, the ACU-100 is fully sealed so may be mounted above decks on boats where space is limited.





p70 / p70s Autopilot Control Head (Sail)

The p70 / p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

The p70 / p70s control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Find out more about the p70 autopilot control head

p70 / p70S Autopilot Control Head | Raymarine

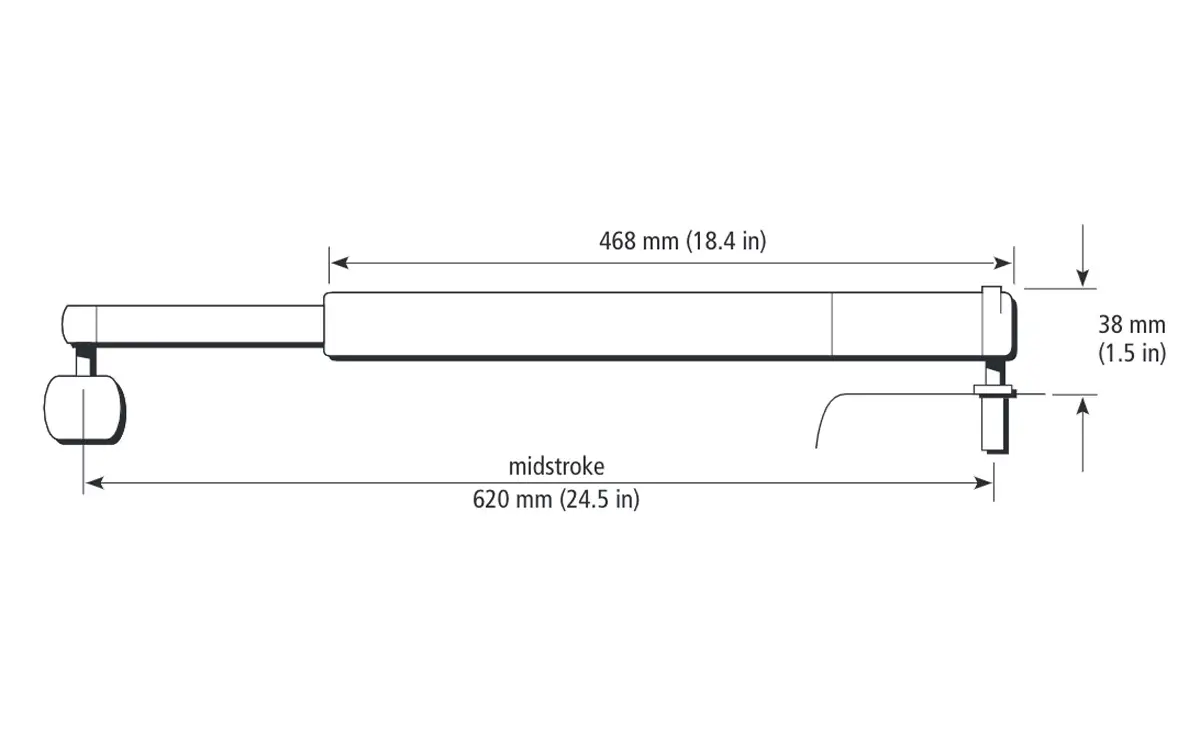

Tiller Drive

The Raymarine EV-100 Tiller Pilots are perfect for large tiller steered yachts up to 6,000kg (13,200 lbs) displacement.

The tiller drive unit is compact and unobtrusive and used by some of the world’s top single-handed sailors!

Tiller Pilot | Raymarine

Evolution Cabling Kit – R70160



The Evolution SeaTalkng cable kit contains.

1 x SeaTalkng Power Cable (0.4m)
1 x SeaTalkng Backbone Cable (5m)
1 x SeaTalkng Spur Cable (0.4m)
1 x SeaTalkng 5-way Connector Block
2 x SeaTalkng T-piece Connector
2 x SeaTalkng Terminator
SKU T70153 Categories , Brand:
