Algne hind oli: 2189,90 €.2125,00 €Current price is: 2125,00 €.
EV-100 roolipilooti saab kasutada purjepaatides mida juhitakse roolirattaga. Roolipiloot on mõeldud huvilaevadele mille kogukaal ei ületa 7500 kg. Soovituslik on jätta vähemalt 20% varu. Piloot koosneb spetsiaalselt purjepaadi rooliratta jaoks disainitud ajamist ST4000 MK II, p70s kontrollseadmest, uuest üheksateljelisest sensorist EV-1 ja ACU-100 aktuaatori juhtimisseadmest.
Võta meiega ühendust!
3-5 tööpäeva
EV1 Sensor CoreThe EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.  |
With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats, runabouts and smaller cruising yachts.
Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.
As a true world-first innovation, the ACU-100 is fully sealed so may be mounted above decks on boats where space is limited.
The p70 / p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.
The p70 / p70s control head also features the LightHouse user interface and a start-up wizard to help you configure the pilot quickly and easily.

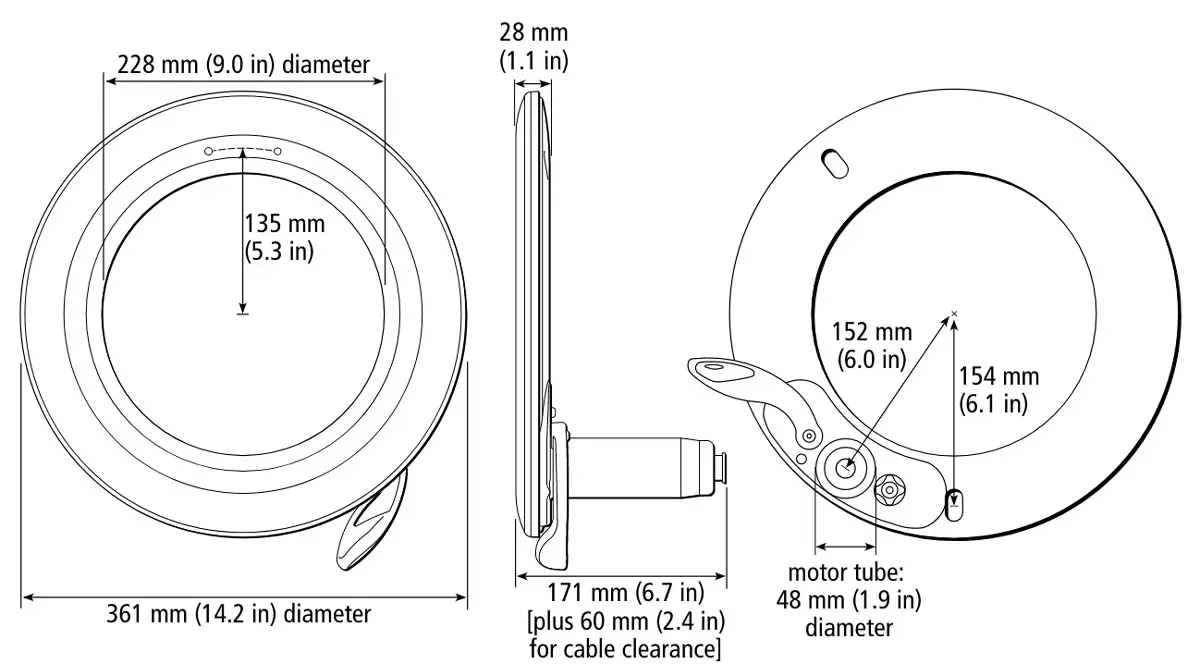

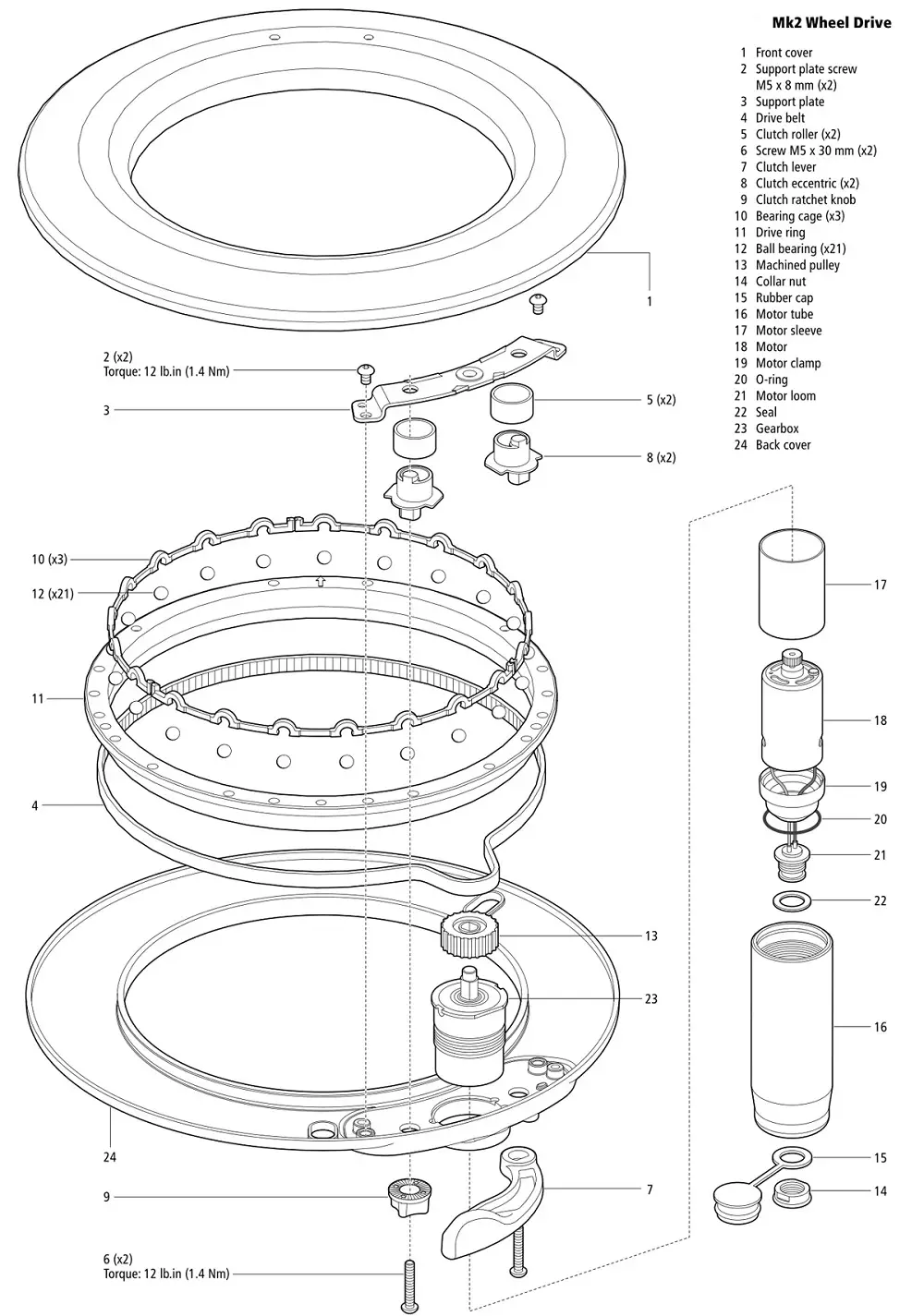

Wheel DriveThe EV-100 wheel pilot comprises a fully enclosed wheel-drive for simple installation and superb autopilot performance.
Specifications Maximum recommended laden boat displacement: 7,500kg (16,500lbs) Revs per minute (rpm): 9 Thrust: 30Nm Connections: STng (x1), NMEA 2000 with adapter cable  |
The Evolution SeaTalkng cable kit contains
| 1 x SeaTalkng Power Cable (0.4m) | |
| 1 x SeaTalkng Backbone Cable (5m) | |
| 1 x SeaTalkng Spur Cable (0.4m) | |
| 1 x SeaTalkng 5-way Connector Block | |
| 2 x SeaTalkng T-piece Connector | |
| 2 x SeaTalkng Terminator |
Registreeritud raymarine toodetel on garantii 3 aastat
