Algne hind oli: 2 349,80 €.1 850,00 €Current price is: 1 850,00 €.
Superpakkumine!

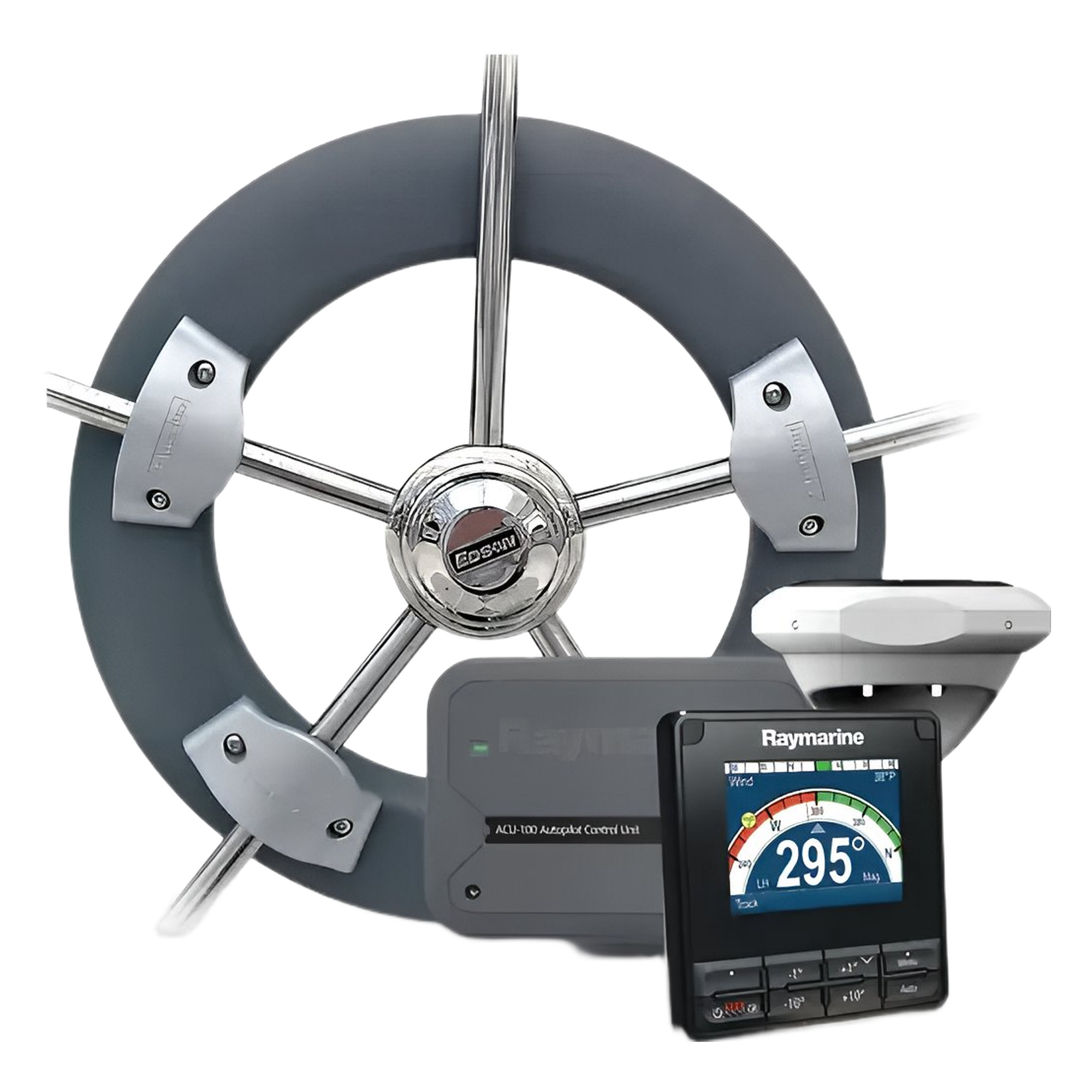

EV-100 roolipilooti saab kasutada purjepaatides mida juhitakse roolirattaga. Roolipiloot on mõeldud huvilaevadele mille kogukaal ei ületa 7500 kg. Soovituslik on jätta vähemalt 20% varu. Piloot koosneb spetsiaalselt purjepaadi rooliratta jaoks disainitud ajamist ST4000 MK II, p70s kontrollseadmest, uuest üheksateljelisest sensorist EV-1 ja ACU-100 aktuaatori juhtimisseadmest. Tutvu kindlasti ka selle komplekti juhenditega ja küsimuste korral pea nõu meie spetsialistiga.
Võta meiega ühendust!
Laotoodetel 2-3 tööpäeva. Muudel juhtudel 7-14 tööpäeva. Küsi lisa!
The EV 100 Wheelr pilot is a perfect autopilot for wheel-operated yachts up to 7.5t displacement. Ideal boat length up to 12 m.
The new Raymarine EV-100 autopilot ensures easy self-control of your boat, difficult calibration is no longer necessary. Due to the intelligent EV-sensor, the autopilot monitors multiple ship movements in all directions and automatically adjusts the steering to match existing sea conditions, without the user having to adjust any other settings. A further big advantage of the autopilot is flexibility of installation.
The device itself can be installed where it is easiest for you to access, while the EV-sensor can be mounted where it makes most sense to you, no matter if above or below deck. The sensor core is protected against water ingress to IPx6 and IPx7 standards. The various components are easily connected to each other via SeaTalk (NMEA2000), and all cables required are included.
Included in delivery
Technical Data EV-1
| Nominal on-board voltage | 12 V (power supply via SeaTalkng) |
| Operating voltage range | 10.8 to 15.6 V DC |
| Power consumption (amps) | 30 mA |
| Sensors | Three-axis digital accelerometer, Three-axis digital compass and three-axis digital angular rate sensor |
| Data connection | SeaTalkng |
| Operating temperature | -20 to +55 °C |
| Storage temperature | -30 to +70° C |
| Relative humidity | max. 93% |
| Water rating | IPX6 |
| Diameter | 140 mm |
| Depth | 35 mm (including housing) 95 mm (including bracket) |
| Weight | 0.29 kg |
Technical Data p70s
| Nominal voltage | 12 V DC |
| Voltage range | 9 to 16 V DC |
| Display Size | 3.5″ |
| Display | Optically integrated, sunlight-readable LCD display |
| Resolution | 320 x 240 QVGA |
| Colours | 16 bit colour resolution (64,000 colours) |
| Colour palettes | Four colour palettes – two day, inverse and red/black |
| LCD brightness | 1;200 nit |
| current consumption (watts) | 1:6 watts |
| Connectors | SeaTalk and SeaTalkng compatible with NMEA2000 marine networks |
| Operating temperature | -25º C to 55º C (-13º F to 131º F) |
| Storage temperature | -30º C to 70º C (-22º F to 158 ºF) |
| Relative humidity | Maximum 93 % |
| Waterproof to | IPX6 |
| Compliance | Europe: 2004/108/EC | Australia and New Zealand: C-Tick Compliance Level 2 |
| Included in delivery | Instructions, seal, display, sun cover, replacement frame, mounting screws |
Lae alla EV-100 roolipiloodi paigaldusjuhendid:
EV1 ja ACU paigaldusjuhend
ST4000 MK II rooliajami paigaldusjuhend
p70s ja p70Rs paigaldusjuhend
Roolinurga anduri paigaldusjuhend
p70 ja p70Rs kaudu Evolution piloodi seadistamis- ja kasutamisjuhend
Lisad:
Soovitame lisada ka roolinurga andur M81105.
Registreeritud raymarine toodetel on garantii 3 aastat
