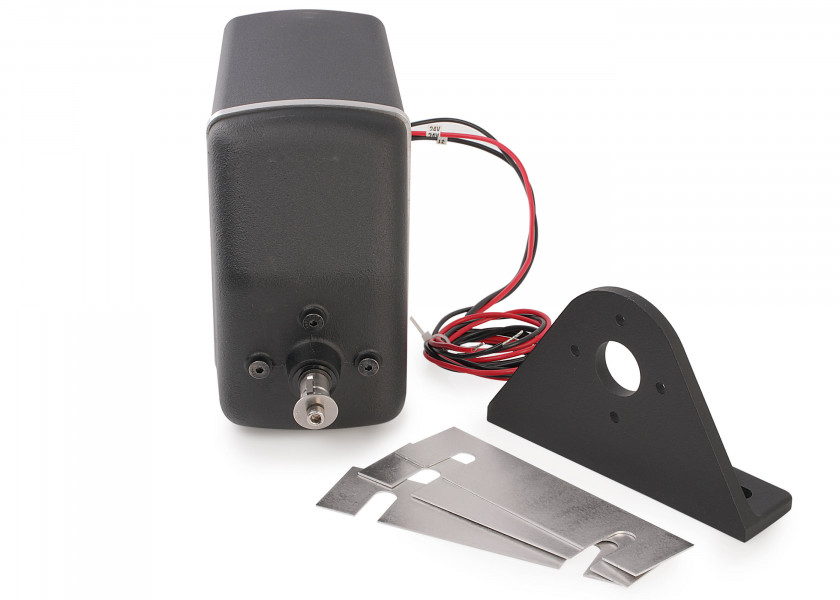

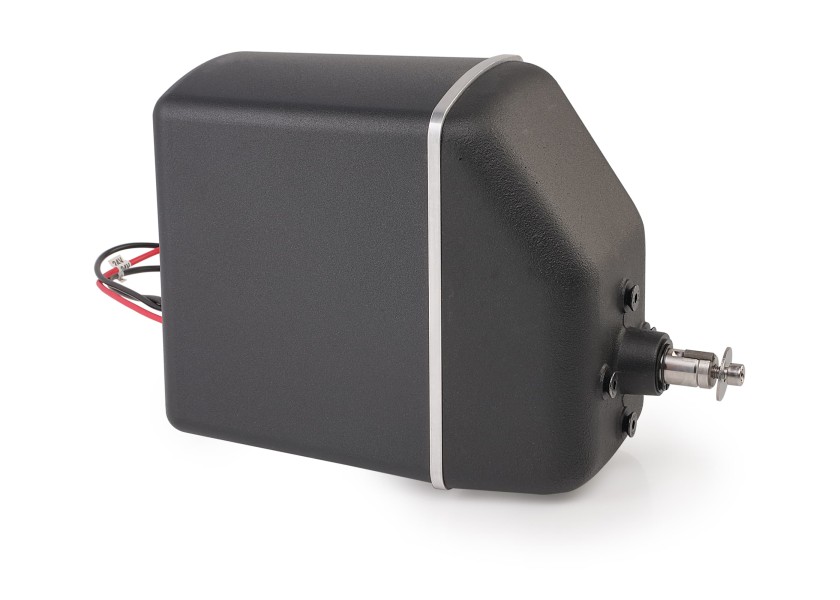

Raymarine Type 1 Rotary Drive 12V

Kirjeldus

Overview

The Rotary drive is designed for steering systems that can be driven from the helm position through a chain and sprocket (for example: cable and rod steering systems).

The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot-controlled steering with quiet operation.

Features

• Rugged electric motor, that drives a precision epicyclic gearbox via a high tensile drive belt.
• Electromagnetic clutch that transmits high torque loads without slipping.

Specifications

• Maximum vessel displacement: 22,000 lb(10,000 kg)
• Power Consumption: 24-48 Watts
• Recommended hardover to hardover time: 10 sec
• Peak output torque: 180 ln.in (20Nm)
• Maximum shaft speed: 33 rpm

Lae alla Rotary Drive paigaldusjuhend
