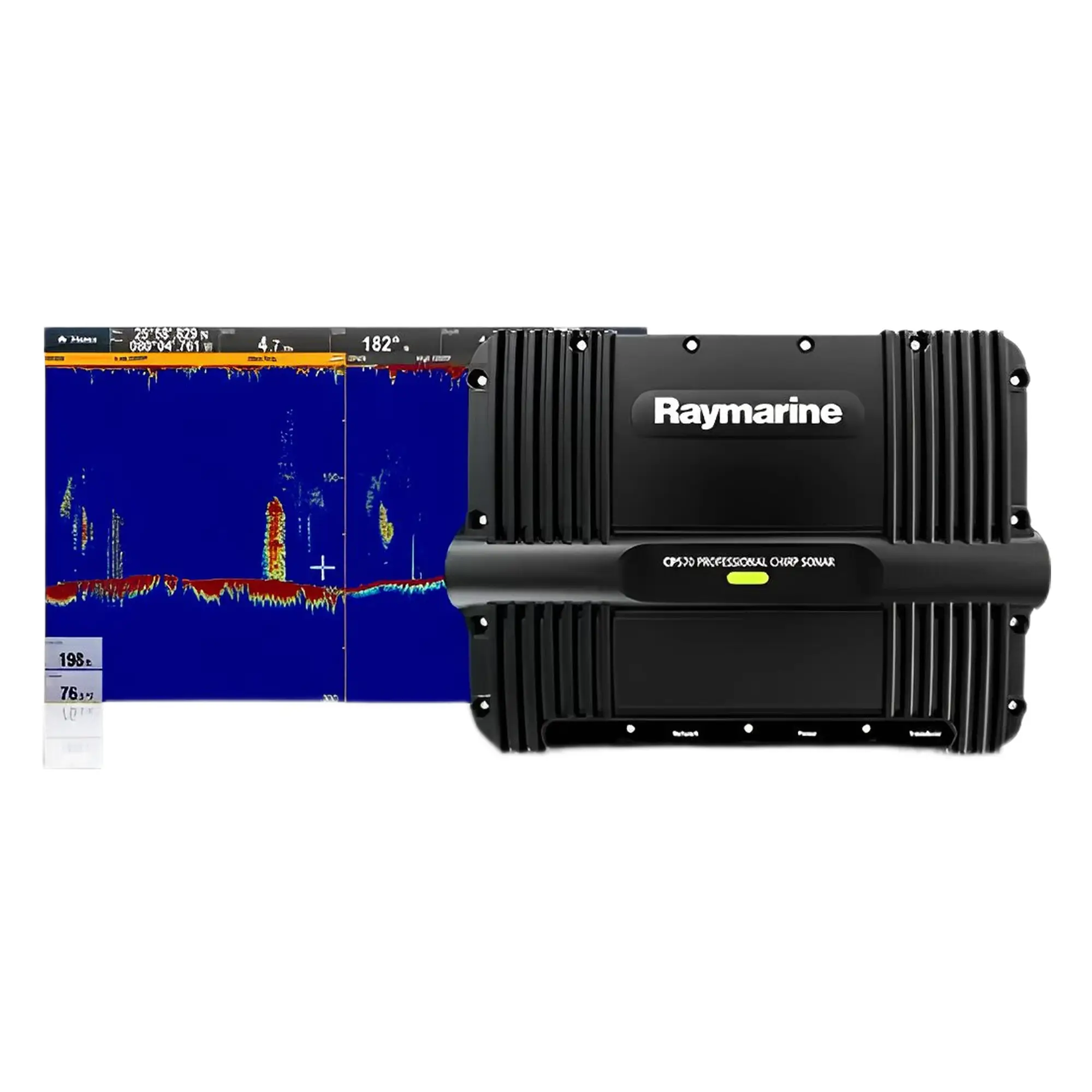

CP570 ClearPulse 4kW sonar module

Raymarine CP570 – Professional CHIRP Sonar Module for Serious Anglers

Raymarine CP570 is a high-end sonar module that brings exceptionally detailed sonar imagery to multi-function displays and High target resolution, using wideband CHIRP technology And twenty completely independent sonar channel. Intended for recreational and competitive fishing, CP570 offers up to 4 kW output power and is reliable even in harsh sea conditions.

Powerful sonar for professionals

• 2 separate CHIRP channels, 2 kW each – total power up to 4 kW

• Scope up to 3000m (10,000 ft)

• Watching fish in different water layers simultaneously

• High sensitivity – detects feed, shoals of fish and even minor changes in the seabed

Utmost clarity and precision

• Up to 10× higher resolution when conventional speakers

• TruZoom™ suo – enhancing details without losing resolution

• Fast bench processing provides stable and accurate bottom tracking even in deep waters and rough seas

• Automatic sensor detection Airmar Xducer ID™ adapter

Complete customisability and control

• Compatible low, medium and high CHIRP frequencies anduritega (standard- ja laia nurga versioonid)

• Both CHIRP channels can be to lead independently

• Possible to create full or split screen views Raymarine LightHouse II systems

Technical data:

• Sonar type: Broadband CHIRP

• Frequencies 25–250 kHz (two independent channels)

• Power Up to 4 kW (2 x 2 kW)

• Scope of work Up to 3000 m

• Feed: 12/24 V DC

• Energy requirement max 30.6 W

• Water resistance: IPX6 (aluminium housing)

• Connections:

  • Power cable

  • RayNet network connection (10/100 Mb/s)

  • Anduriühendus

Compatibility

• Raymarine aSeries, cSeries, eSeries, new eS Series and gS Series multifunctional displays (LightHouse II)

• Raymarine Axiom Series (LightHouse 4 and 5)

Recommended use:

Professional fishing and fishing competitions

Instructions:

Download CP570 external fishfinder module Installation guide
