Price range: 78,12 € through 117,18 €

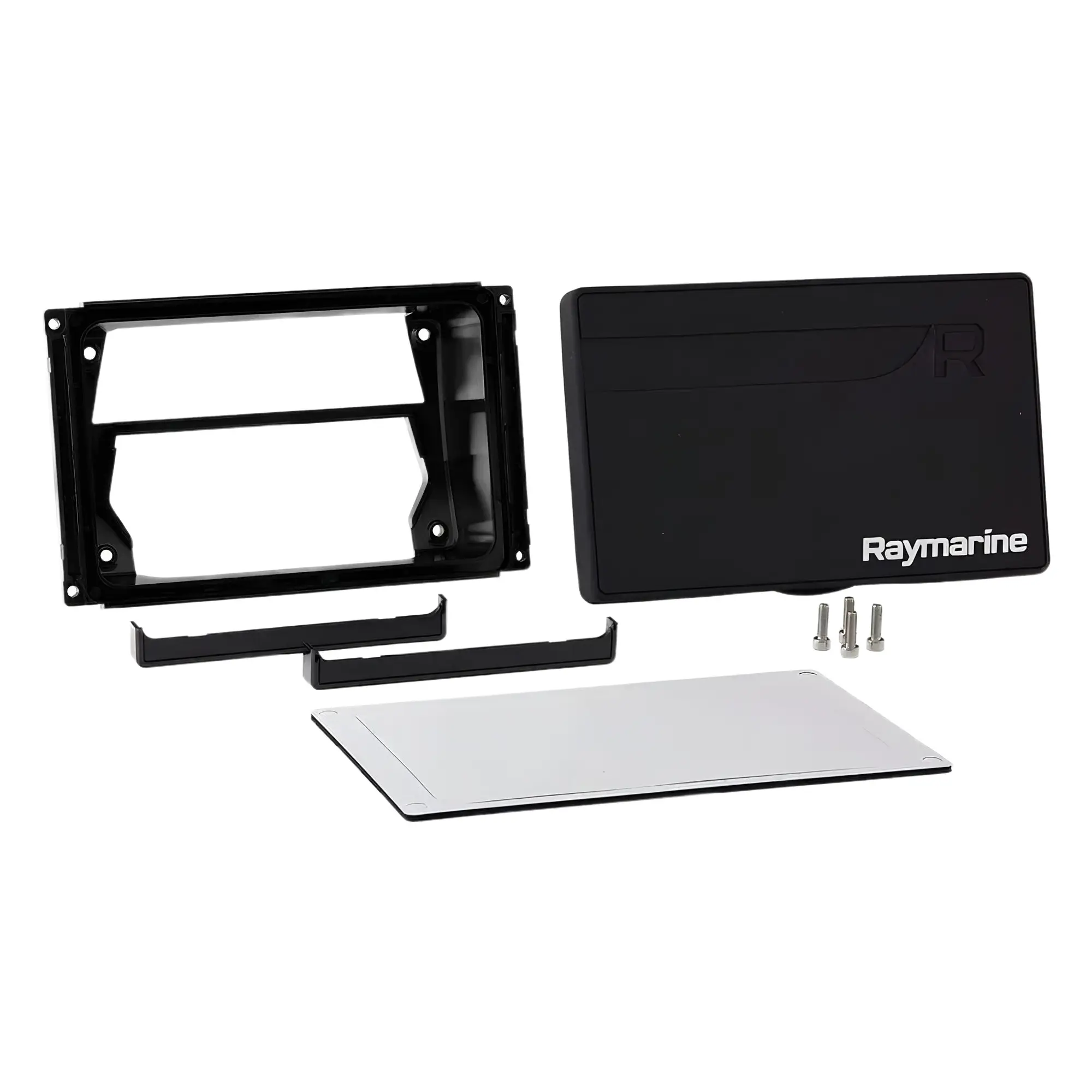

The Axiom Front Mounting Kit is suitable for installing Axiom, Axiom+, and Axiom2 series chartplotters into a wall or console from the front. This is a good solution if the plotter itself fits, but there is no access from behind the location. The kit includes its own bracket with edges for fixing to a flat surface from the front with four screws at the corners, plotter mounting brackets for securing the plotter within the bracket, a gasket, and a new, wider screen bezel. The new bezel is necessary because the Front Mounting Kit makes the plotter approximately 2 cm wider on both sides, and the dimensions change by 4-8 mm at the top and bottom. You can choose from all three different sizes: Axiom 7″, Axiom 9″, and Axiom 12″. Be sure to also familiarise yourself with this product instructions and in case of questions, consult our specialist.
Select the option that suits you from the drop-down menu.
Get in touch with us!
For produce, 2-3 working days. In other cases, 7-14 working days. Ask for more information!
The Axiom Front Mounting Kit is suitable for the front mounting of Axiom, Axiom+, and Axiom2 series chartplotters into a wall or console. It is a good solution if the plotter itself fits, but there is no rear access to the chosen location. The kit includes its own frame with edges for securing to a flat surface with four screws from the front at the corners, mounting brackets for securing the plotter within the frame, a gasket, and a new wider screen cover. The new screen cover is necessary because the Front Mounting Kit makes the plotter approximately 2 cm wider on both sides, and the overall dimensions change by 4-8 mm at the top and bottom.

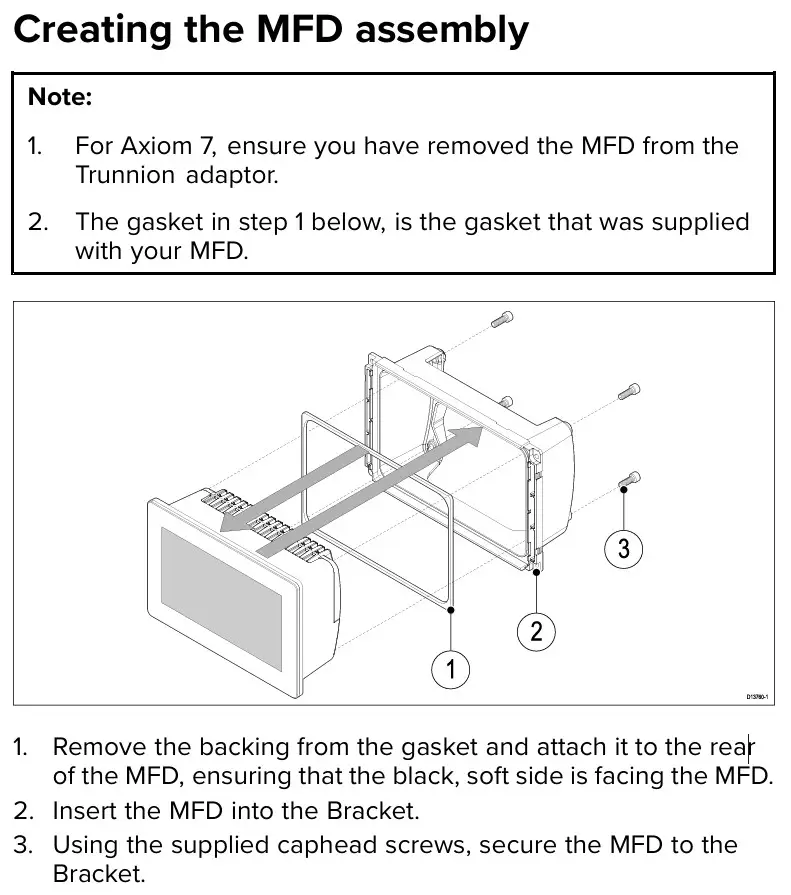

NB! For Axiom 7, you must first remove the frame intended for the mounting foot. Unscrew the 4 hex head bolts on the rear of the Axiom 7 and remove the frame.
Instructions:
Download Axiom 2 Installation guide

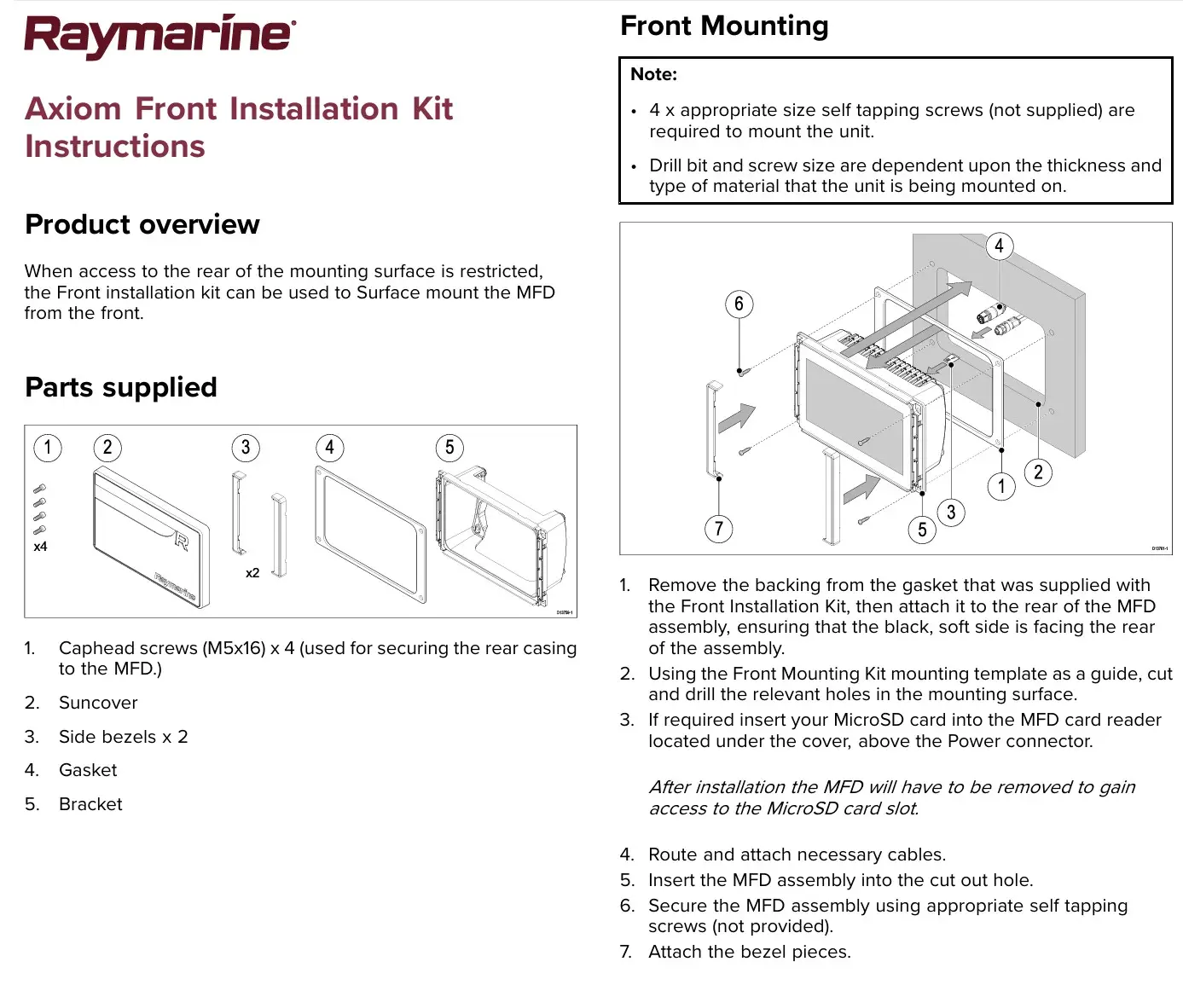

Download Axiom Front Mount Kit Installation guide
| Vali: | Axiom 7" Front Mounting Kit, Axiom 9" Front Mounting Kit, Axiom 12" Front Mounting Kit |
|---|
