NMEA 2000 Multiport Box

NMEA 2000® Micro-C Multiport Box

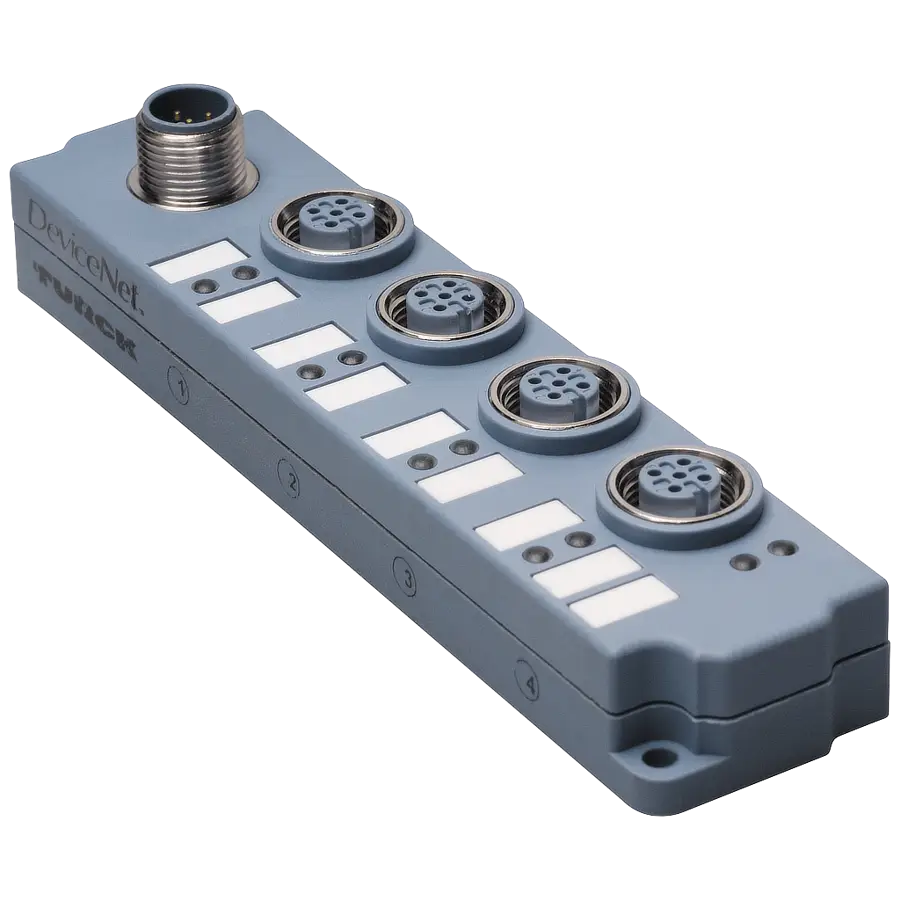

The Maretron Multiport Box is like a 4-way T-connector or a 4-way drop. A Drop Cable comes from the BackBone into the Multiport Box, and this can then be split to 4 devices or sensors. It is essential to use only dedicated NMEA 2000® approved cables and connectors in NMEA 2000® networks to ensure correct data transmission and network reliability. The Multiport Box has 1x Male connector for connecting to a T-connector on the BackBone line, and 4x Female connectors for connecting Drop Cables leading to devices. To integrate an NMEA2000 network with a Raymarine STNG network, use original adapter cables. Do not duplicate the power circuits or grounding of different integrated networks.

Features:

• Screw terminals for good connections
• Cast housing material/Colour: Thermoplastic PUR/Blue-grey
• Contact carrier material/colour: Thermoplastic PUR/Blue-grey
• Kontaktmateriaal/kap: messing/goud
• Coupling material/coating: brass/nickel

Electric:

• Voltage rating: 250V
• Load capacity 4 A

Environment

• Protection class: IEC IP68, NEMA 1, 3, 4, 6P

Fastenings

• NMEA: Approved by NMEA 2000®
• IEC: IEC 61162-3

Note:

The 4T-splitter is a good solution when more than one instrument or sensor needs to be added to the NMEA 2000® network!

Instructions:

Download Maretron NMEA2000 Network Installation Guide.

Download Maretron terminators and a multi-port combiner information sheet.
