Raymarine ECI-100 Engine and Autopilot Gateway

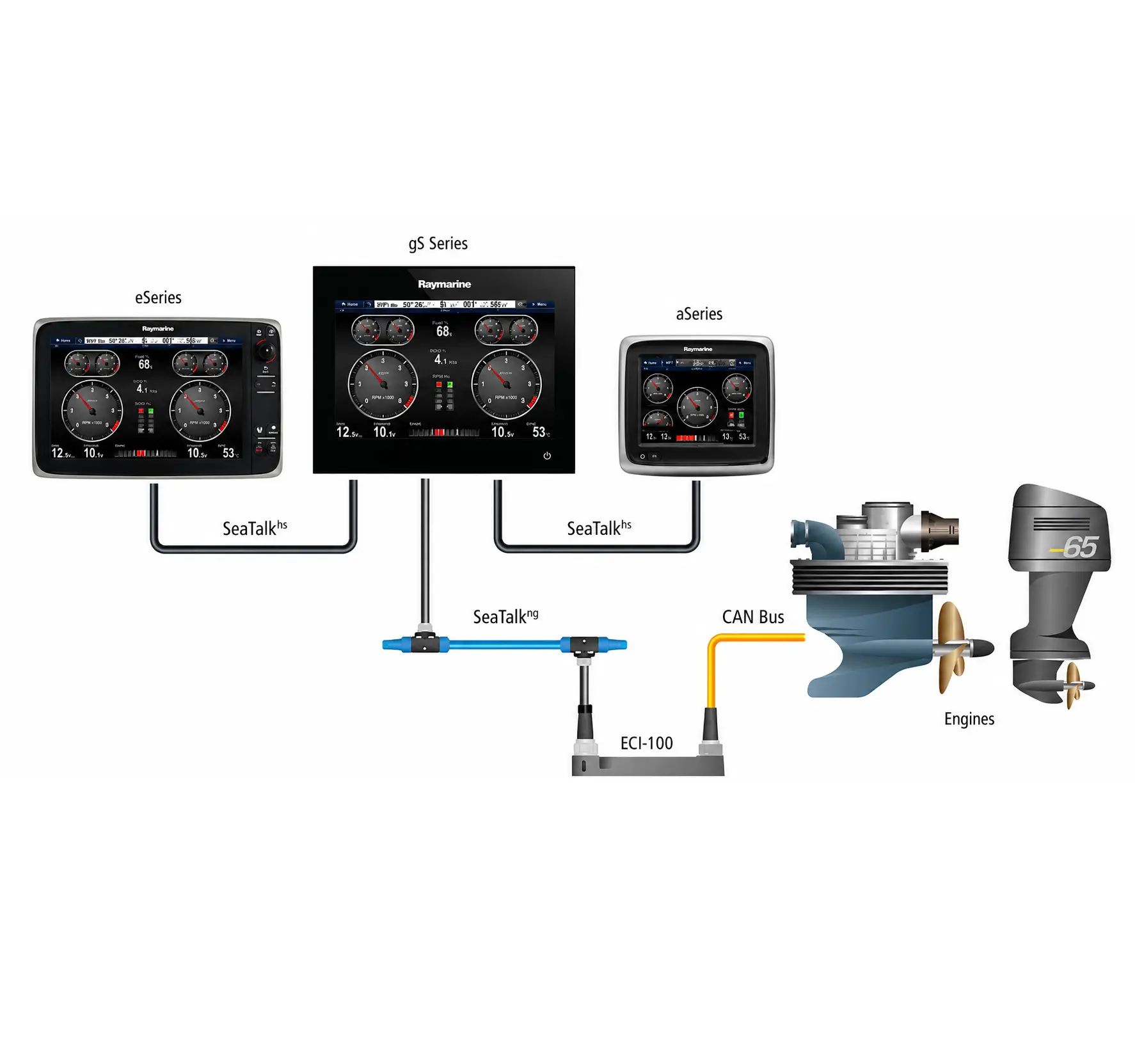

The Raymarine ECI-100 is an engine data and Drive-by-Wire autopilot gateway. This universal engine data reading and autopilot control interface is an innovative and affordable solution for connecting engine data and DBW steering systems to Raymarine's autopilot and navigation systems. As a simple isolated CAN bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multi-displays. It works with the Raymarine Evolution EV2 autopilot system, which adds autopilot functionality to Drive-by-Wire steering.

Main features

• A simple and unified connection point for engine data. An affordable and easy solution eliminates the need for multiple engine and autopilot gateways.
• View engine data alongside Raymarine radar, sonar and other navigation technologies on a single touch screen display.
• Easy access to customisable screens displaying engine performance data, fuel consumption, alarms, and more.
• View engine information displays on your smartphone or tablet using Raymarine’s mobile apps.
• The easy-to-install ECI-100 makes engine and navigation integration a reality on virtually any size vessel.
• Enjoy autopilot control from any networked display. The ECI-100 brings Raymarine’s Evolution 9-axis sensor and adaptive autopilot control to your inline propulsion system without the need for a dedicated autopilot gateway.
• Enjoy full autopilot control using a single touchscreen.

ECI-100 engine data parameters

• Engine speed
• Gearbox oil temperature
• Engine oil temperature
• Fuel tank level
• Engine temperature
• Fuel consumption during the journey (calculated using ECI-100)
• Engine oil pressure
• The generator's potential
• Engine coolant pressure
• Total engine operating hours
• Engine fuel consumption
• Engine load in percentage
• Boost pressure
• Gearbox
• I am potential
• VIN (not displayed on screen)
• Gearbox oil pressure
• Software number (not displayed on screen)

What's in the box?

• ECI-100 interface
• 400 mm SeaTalkNG flying lead (A06038)
• Document pack
• Fixing screws (2)

Raymarine product code E70227

NB! For Volvo-Penta, please check before purchase if this product is compatible with your system. You will likely also need EVC Link cable and if there's nowhere to put it, then too Y-Loom cable. NB! From August 2023, after a Volvo-Penta software update, this product may no longer be suitable and it would be advisable to choose Volvo-Penta Easyconnect for engine data and a separate system for the autopilot. Volvo-Penta Autopilot Gateway.

Guide

Download Raymarine ECI-100 Installation Guide.
