STNG In-Line terminator

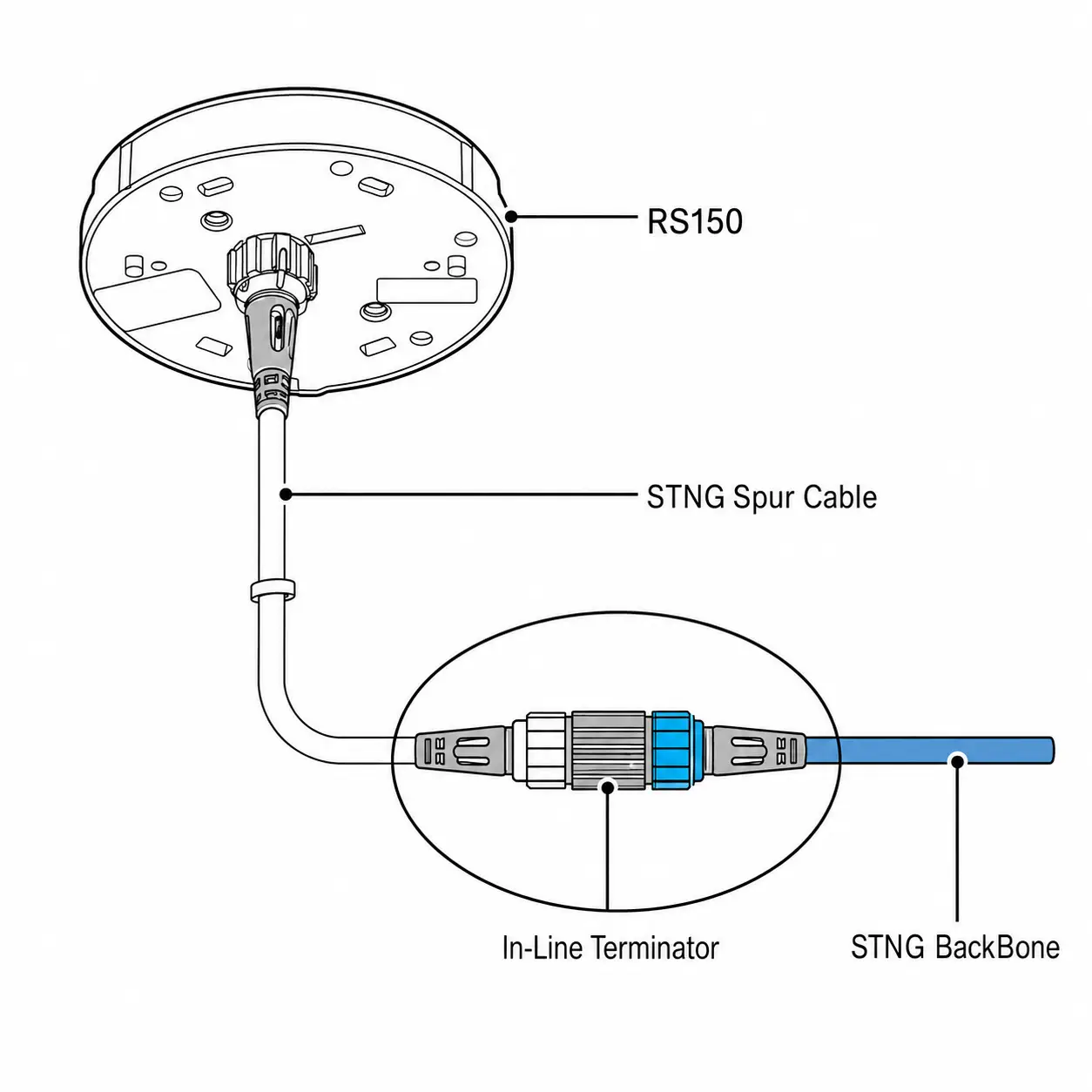

The Raymarine STNG In-Line Terminator is a very important part of an STNG (NMEA 2000) network. An STNG network must begin and end with a terminator; there must be strictly only 2 terminators per network. The In-Line Terminator is for cases where the network starts or ends with a spur cable. In this instance, the In-Line Terminator is connected to the end of the Back-Bone cable, and the spur cable, which goes directly to the device, is then connected to this terminator. Once the network is complete, there should be no empty blue sockets in an STNG network. All cables and connectors are colour-coded; blue and white cables cannot be connected to the wrong socket on an STNG connector as the pin layout is different. Familiarise yourself with the operating principles of an STNG (NMEA 2000) network before using the product. NB! The blue and white nuts on STNG connectors should only be turned a quarter of a turn. Corresponding markings are indicated on the product. Be sure to also familiarise yourself with this product. instructions and in case of questions, consult our specialist.
