Original price was: 701,00 €.680,00 €Current price is: 680,00 €.

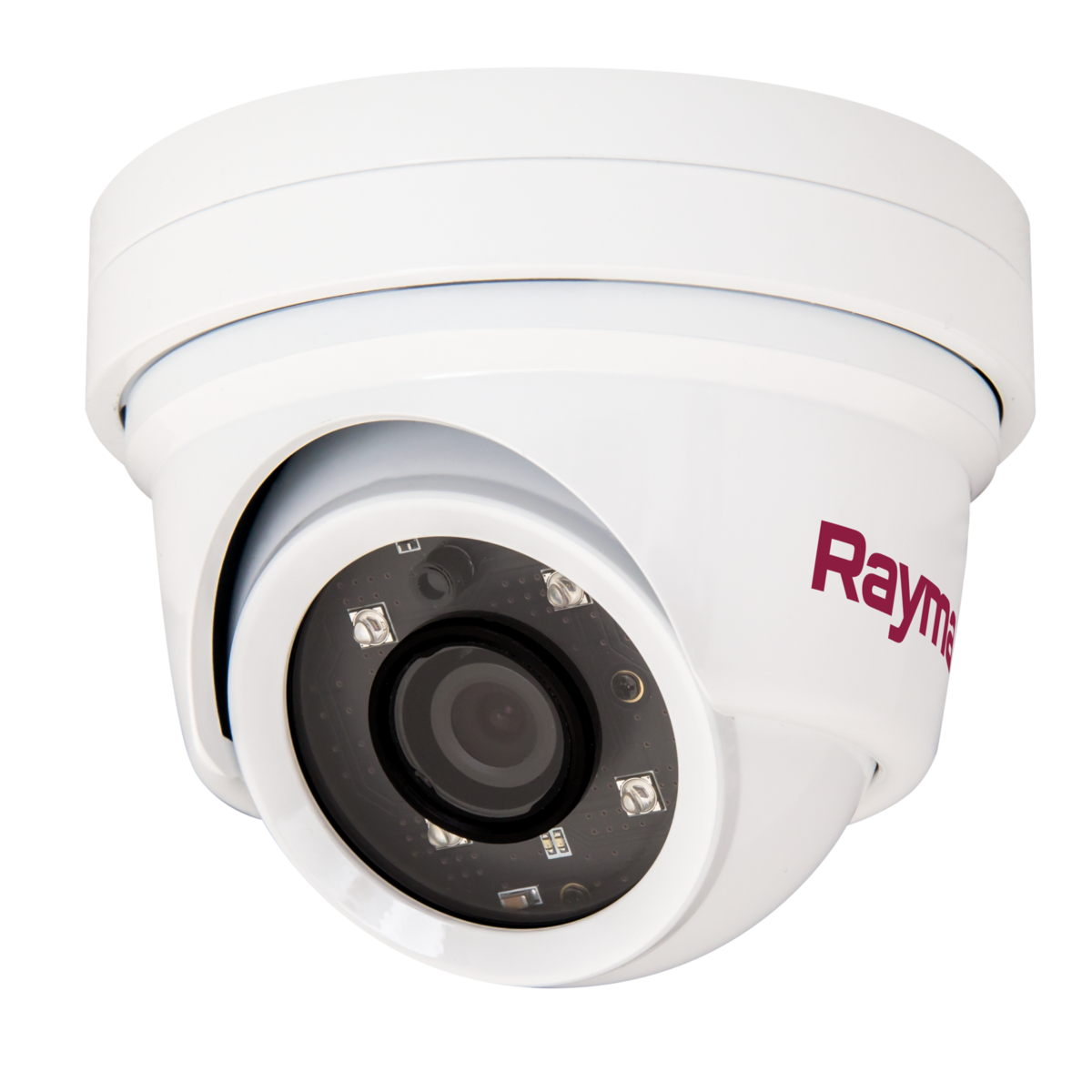

The CAM220 is a ruggedised, High Definition, Day and Night network dome video camera suitable for above or below deck applications. The dome design provides all-round selectable visibility, whilst its small frame size allows for rapid installation. Styled to blend in with your boat's aesthetic design. The dome design provides all-round selectable visibility, whilst its small frame size allows for rapid installation. Styled to blend in with your boat's aesthetic design. Plug and play integration with Raymarine MFDs running Lighthouse II on RayNet. Power over Ethernet (PoE) or direct 12v DC power supply. A simple mechanical frame allows the camera to be locked, rock-steady, into position. High bright IR LEDs for operation in total darkness.
Get in touch with us!
For produce, 2-3 working days. In other cases, 7-14 working days. Ask for more information!
The CAM220 is a ruggedised, High Definition, Day and Night network dome video camera suitable for above or below deck applications. The dome design provides all-round selectable visibility, whilst its small frame size allows for rapid installation. Styled to blend in with your boat's aesthetic design. The dome design provides all-round selectable visibility, whilst its small frame size allows for rapid installation. Styled to blend in with your boat's aesthetic design. Plug and play integration with Raymarine MFDs running Lighthouse II on RayNet. Power over Ethernet (PoE) or direct 12v DC power supply. A simple mechanical frame allows the camera to be locked, rock-steady, into position. High bright IR LEDs for operation in total darkness.
System |
|
| CPU | 32-bit ARM9 RISC CPU up to 432MHz |
| Flash / SDRAM | 128MB / 128MB |
Camera |
|
| Image Sensor | 2.0 Megapixel 1/2.8″ SONY progressive scan CMOS (Exmor) |
| Total Pixels | 1952(H) x 1116(V) 2.18 Megapixel |
| Effective Pixels | 1944(H) x 1104(V) 2.15 Megapixel |
| S/N Ratio | More than 50 decibels |
| Minimum Illumination | 0 Lux (IR On) |
| IR Distance | 20M (4 Built-in High Power LEDs) |
| Day and Night | ICR |
| Lens | 3.6mm Wide angle Megapixel Board Camera Lens |
| Field of View | Horizontal = 93.0 deg +/- 3 deg Vertical = 51.0 deg +/- 3 deg |
Video |
|
| Video Compression | H.264 High Profile@4.0, MJPEG – Image quality: 3 steps |
| Resolution | Up to 1920 x 1080 (Full HD) |
| Frame Rate | H.264 Up to 30fps with 1920×1080 | MJPEG Up to 30fps with VGA resolution |
| Video Streaming | Support for multiple streams with H.264, MJPEG, adjustable frame rate, and CVBR/CBR in H.264. |
| Image Setting | Day and Night Auto White Balance Shutter Speed (1/4 sec. to 1/2,000 sec.) DSS BLC Brightness, Contrast, Sharpness, Mirror |
System Integration |
|
| Security | Password protection, User access log, HTTPS encryption |
| Supported Protocol | HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP |
| Intelligent Video | Détection de mouvement jusqu'à 1920×1080 avec des blocs de 12×12 |
Physical |
|
| Power Source | DC12V/1.5A, PoE (Power over Ethernet): 802.3af |
| Power Consumption | Max. 5.4W with IR |
| Net weight | 230g (camera only) |
| LEDs | Power, Network connection |
| Dimensions | 100mm (diameter) x 80mm (height) |
| General Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Registered Raymarine products have a 3-year warranty
