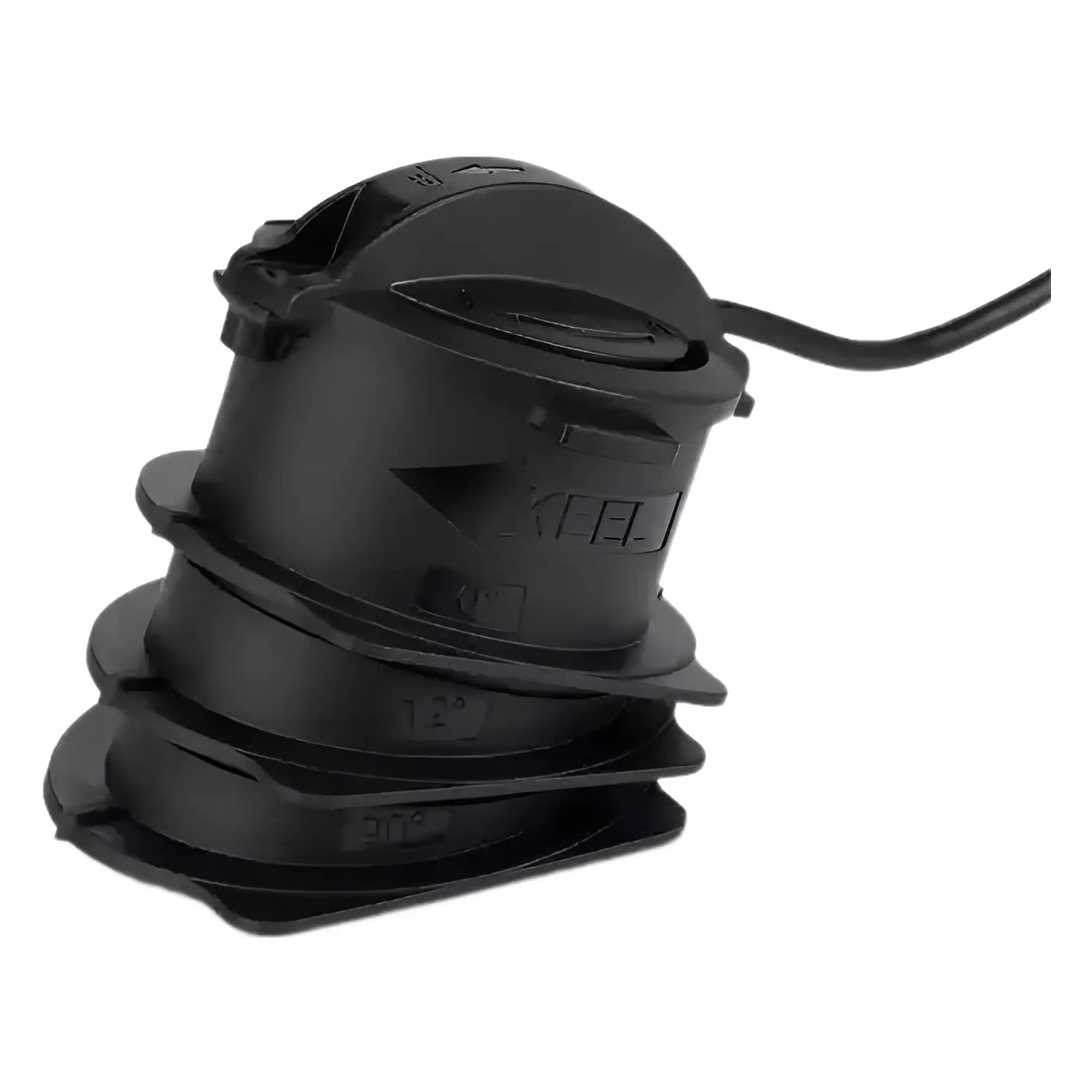

CPT-S High Chirp Transducer. 0/12/20° beam to seabed, with 6m cable

Raymarine CPT-S CHIRP DownVision transducer – accurate depth measurement without drilling a hole in the hull

The Raymarine CPT-S CHIRP transom-mount transducer offers exceptional depth measurement accuracy without the need to drill a hole in the hull. An ideal solution for boats with GRP (glass-reinforced plastic) hulls.

The kit includes a sleeve, which is glued to the inside of the hull and filled with antifreeze liquid, which improves sound wave propagation and ensures accurate results. The clever design allows installation at various angles (0–25°), making the sensor universally suitable for a wide range of boats.

Key features

• Easy installation – no drilling required

• CHIRP technology provides accurate depth information up to 183 metres

• Installation angle 0–25° – suitable for various boat shapes

• Suitable for GRP hull boats

• 9-pin connector connection, 6 m cable

Technical data

• Frequencies: 170–230 kHz (High CHIRP)

• Maximum depth: 183 m / 600 ft

• Installation angles: 0°, 12° or 20°

• Suitable body material: GRP (glass-reinforced plastic)

• Main material: Plastic (urethane)

• Cable length: 6 metres

• Connection: 9-pin plug

• Maximum body thickness: 28 mm

Compatibility

The Raymarine CPT-S CHIRP transducer is compatible with the following Raymarine chartplotters (adapter cable required):

• Raymarine a68

• Raymarine a78

• Raymarine a98

• Raymarine a128

• Raymarine Element S
