Ray91 VHF Radio and AIS Receiver: Clear Voice VHF Black-Box

The MMSI number can be ordered Consumer Protection and Technical Regulatory Authority

Product details

The new Ray91 Black Box VHF radio offers superb performance, crystal-clear audio and flexibility: the radio consists of a transmitter-receiver hidden out of sight, while the ergonomic RayMic handset gives you full control of the radio with crystal-clear sound.

Main features

Black Box, kahe rääkimiskohaga VHF-raadio
Integrated Class B Automatic Identification System (AIS) receiver
The corded handset and passive speaker are included.

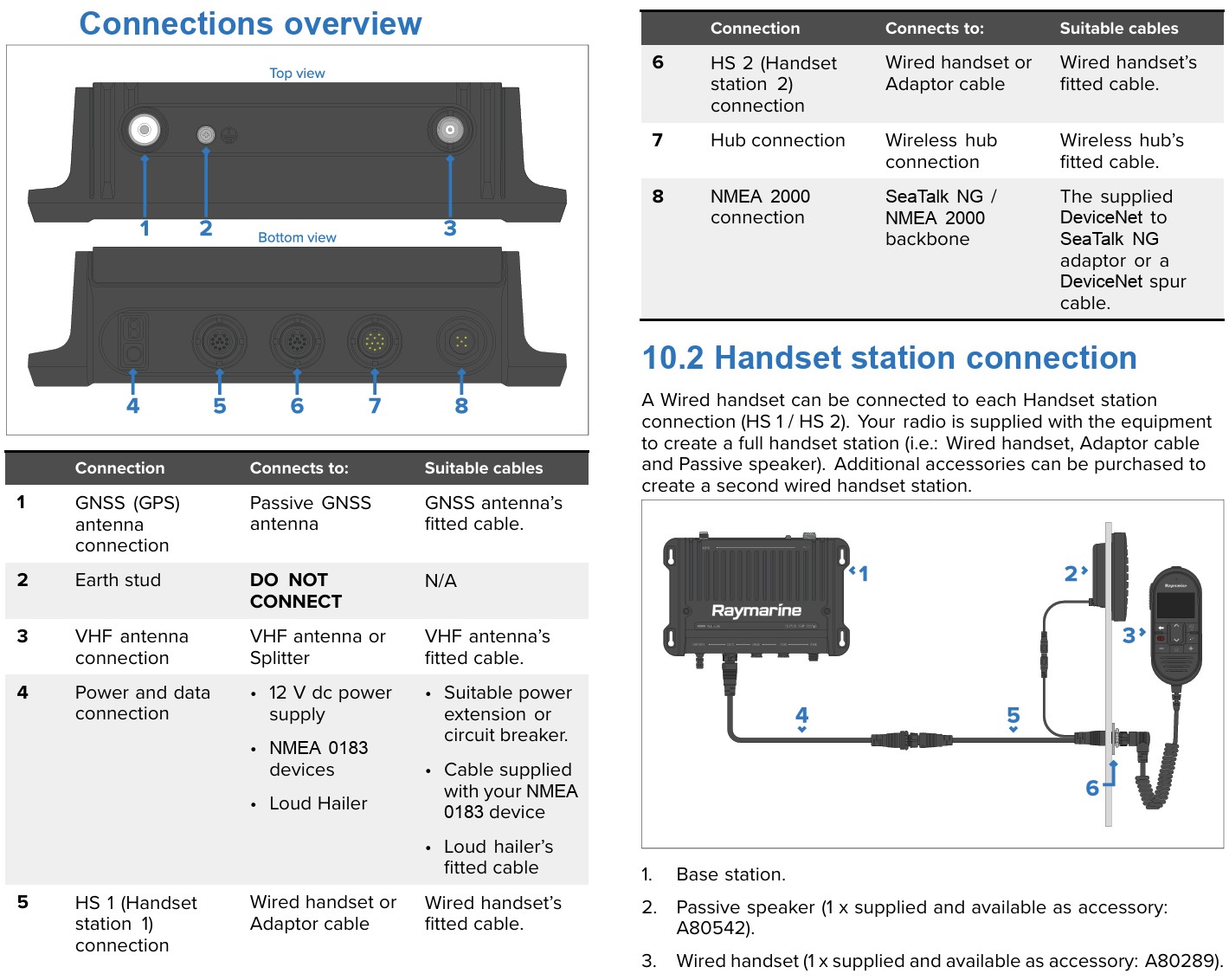

Expandable to two RayMic wired intercom units
Integrated Hailer loudspeaker amplifier and fog signal generator
Optional external GPS receiver and Class D selective calling system
NMEA 2000 ja NMEA 0183 liidesed

Integrated AIS receiver

Thanks to the integrated AIS receiver, the Ray91 can receive navigation and safety transmissions from nearby AIS-equipped vessels. NMEA2000 and NMEA0183 interfaces allow the received information (vessel name, course, speed, CPA, and other voyage information) to be easily transmitted to compatible multifunction displays.

Uncompromising communication

The Ray91 is equipped with a powerful 25W transmitter and commercial-grade electronics, ensuring a long life and high performance. Channel scanning, dual watch, triple watch, and weather alerts are standard. A Class D Digital Selective Calling radio and integrated GPS make setting up advanced safety and calling features easy. Simply enter your vessel's MMSI number during setup and you're ready to go. An optional GA150 passive GPS antenna is required to use the GPS.

Position tracking

The Ray91's AIS receiver allows you to track up to five DSC-equipped vessels in your vicinity. Their locations will be automatically shared with your Raymarine MFD. The radio supports the ATIS system on European navigable inland waterways.

Loudspeaker

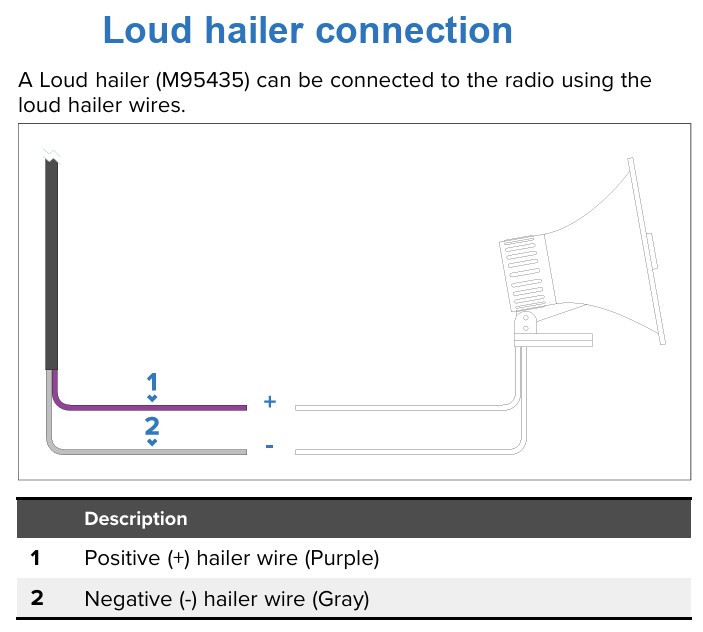

Thanks to the integrated megaphone, you can be heard both on deck and across the harbour. Connect the optional foghorn and signal your presence with 30-watt audio output and two-way communication. In fog, the loudspeaker can be set to automatically emit the necessary fog signals for both motor and sailing vessels at sea and at anchor.

Water-resistant and durable

The Ray91 transmitter-receiver is constructed from robust aluminium for impact and vibration resistance, and maximum heat dissipation. For easy viewing in any situation, the RayMic handset features good illumination. Large keys ensure easy access to frequently used functions.

Technical data

Dimensions (h x w x d)	63 × 235 × 160 mm
Cal	2.6 kg
Operating temperature range	-25 °C to +55 °C
Water resistance	IPX6 and IPX7
Ping	12 V DC
Operating voltage range	9 to 16 V DC
Power consumption	Maximum: < 6 A Standby mode: 600 mA At reception: 2 A
Channels	All available US, International and Canadian VHF marine frequency bands
Frequency range	156,000–157,425 MHz
Output power	High power = 25 W Low power = 1 W
GPS	Integrated GNSS receiver, GA150 GPS antenna not included
NMEA0183	Jah
NMEA2000	Includes (Micro-C to SeaTalkNG adapter cable)
AIS	Integrated AIS receiver
External passive speaker performance	5W / 2.5W
Megaphone output power	24W / 12W
