Raymarine ACU-300 Actuator Control Unit

Raymarine ACU-300 Autopilot Drive Unit (for solenoid valves only, clutchless)

The Raymarine ACU-300 is a robust actuator control unit, providing reliable autopilot drive power and supplying power to the SeaTalkng network. It is designed for use with solenoid-driven autopilot systems and is ideal for medium to large vessels requiring precise and dependable control.

Key features

• Working voltage 12V or 24V DC

• Peak current for solenoid actuator: Maximum 5 A

• Exit output: missing

• Data communication SeaTalkng network

• SeaTalkng teel väljund 3 A (at 12 V), protected by a 3 A fuse

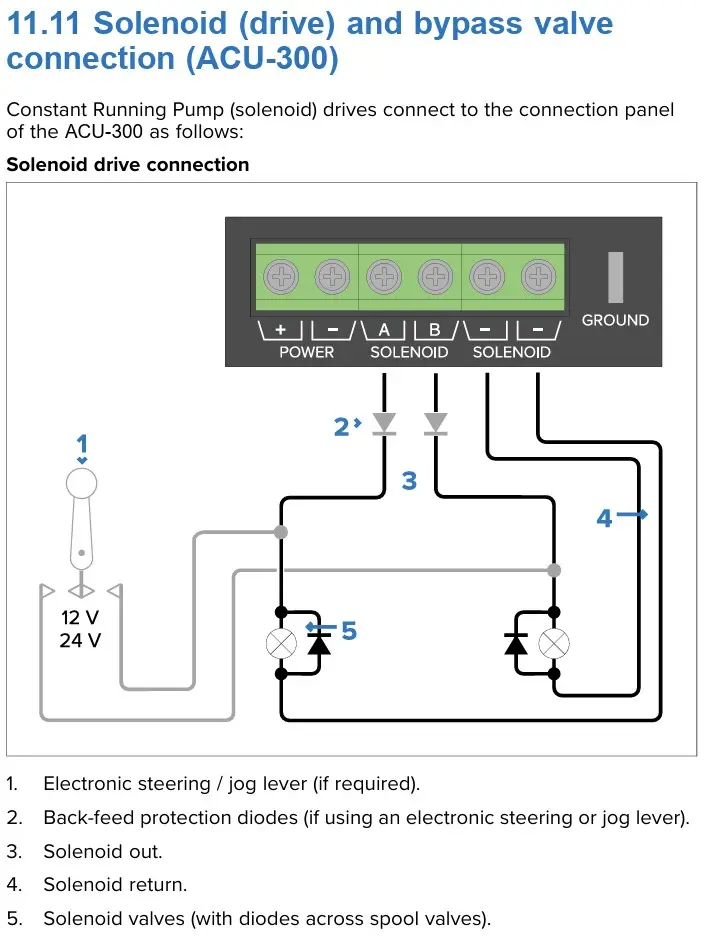

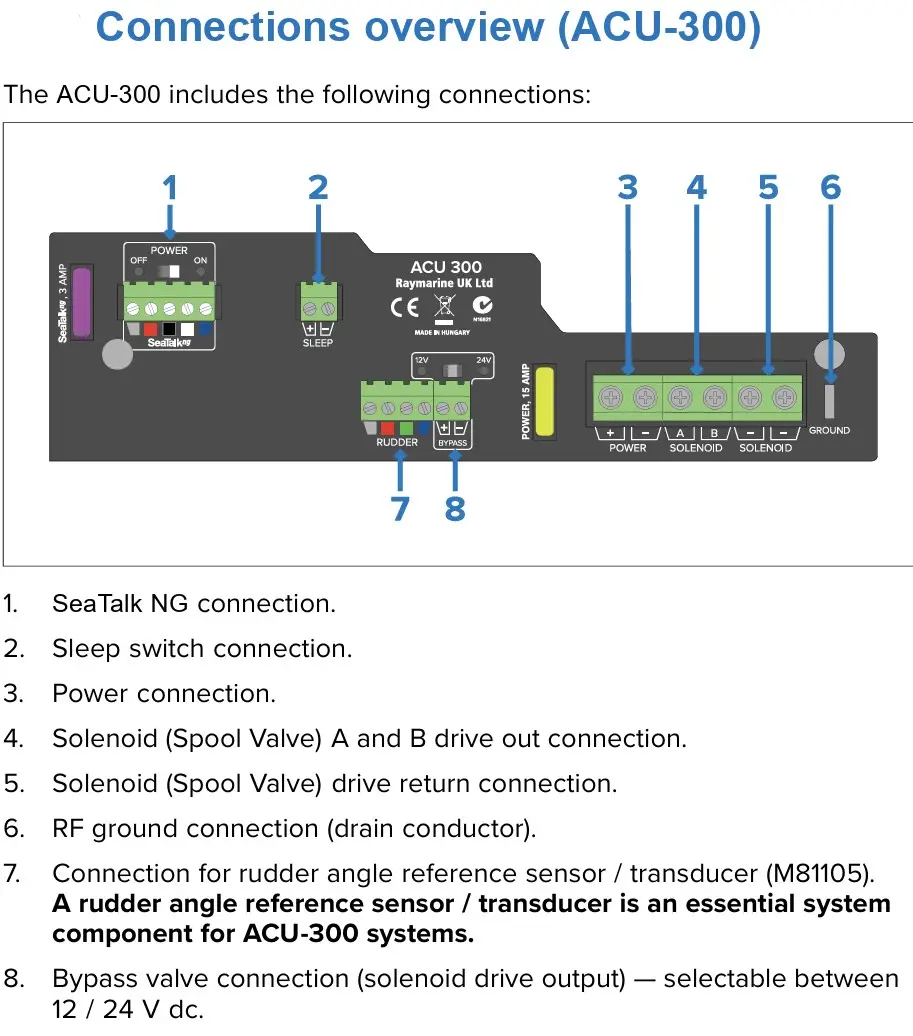

• Connections: roller position sensor, power, solenoid control, earth, sleep mode switch

• Installation environment Waterproof, IP-rated drip resistant

• Operating temperature: -20°C to +55°C

• Storage temperature: -30°C to +70°C

• Relative humidity kuni 93%

• Dimensions: 285 x 211.5 x 64.5 mm

• Cal 2.2 kg

The ACU-300 is compatible with Raymarine Evolution autopilot systems and offers an easy-to-install solution that reduces wiring complexity and ensures reliable system operation. Thanks to the SeaTalkng network connection, integration is simple and flexible, allowing other Raymarine devices such as sensors, control heads, and rudder feedback units to be integrated.

Download the Evolution autopilot installation manuals:

EV1 and ACU Installation guide

Autopilot pump Installation guide

p70s and p70Rs Installation guide

Steering angle sensor Installation guide

Evolution p70 and p70Rs pilot user and operating manual
