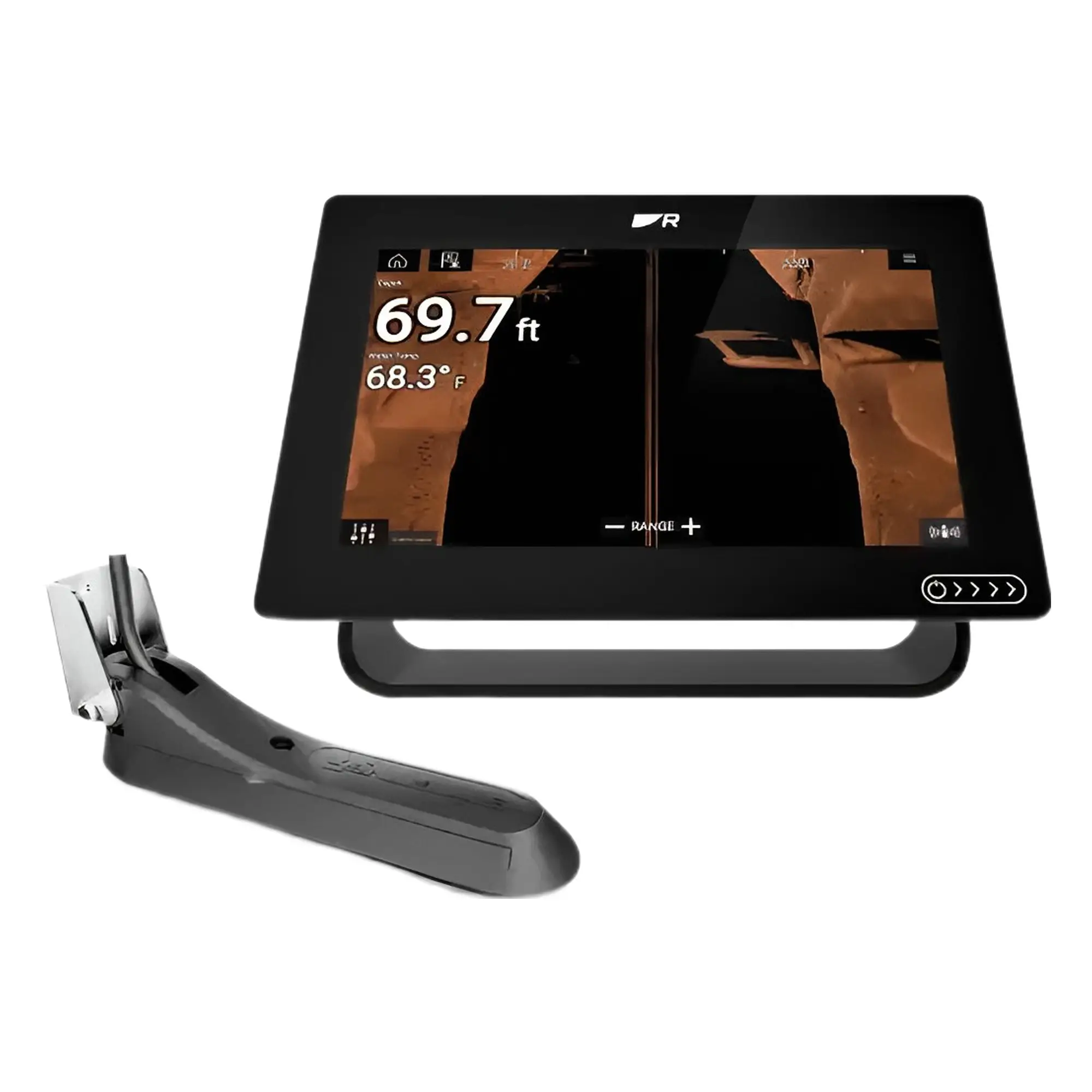

Axiom+ 9 RV: HydroTough™ screen and intuitive user interface

RAYMARINE AXIOM+ Product Introduction

General Overview

Raymarine AXIOM+ series of chartplotters and fishfinders are equipped with new Dartmouth Lighthouse operating system, fast quad-core processor and with a large internal capacity to ensure top-level performance. The device HydroTough™ screen offers greater brightness and durability compared to previous models. Additionally, AXIOM+ is expandable, allowing for feature development according to user needs.

Key features

HydroTough™ Screen

25% brighter compared to earlier models, ensuring excellent visibility even in bright sunlight.
Nano-gate provides additional impact resistance and makes water and dirt removal easy, ensuring the device is always ready to offer precise processing.

Swift Performance

Touch-sensitive controlSimple and fast navigation, with clearly visible icons and menus.
Drag and drop The function allows data fields to be placed in different locations and sizes on the screen.
User profiles and custom settings are saved to speed up device usage.

New LightHouse Dartmouth Operating System:

Customisable colour schemes ensure optimal visibility both day and night.
Enhanced dashboard Provide an overview of all the relevant data.

Networks and Connectivity

NMEA 2000 and Ethernet Connections ensure device connectivity.
Built-in WiFi, Bluetooth 4.0 and microUSB port simplify connectivity and data exchange.

Best Maps and Navigation

Compatible with map selections Navionics, C-Map and Lighthouse.
Contemporary Vector and network maps The tug ensures accurate and reliable navigation.
3D and satellite view väärtused pakuvad täiendavat teavet maastiku kohta.

Integrated RealVision 3D Sonar

CHIRP DownVision, SideVision, RealVision 3D and high-frequency Chirp allow detailed mapping of underwater structures.
60 different CHIRP frequencies ensure exceptional accuracy and lifelike images to simplify fish finding and navigation.

Technical Details:

Screen size9″ multitouch with HydroTough coating
Resolution: 1280 x 720
Brightness1500 nits
View from: 85° in all directions
Feed12 V DC (8 – 16 V DC)
Power consumption11.98 W
Connectivity:
- 1x Ethernet (RayNet)
- 1x USB microAB
- Wi-Fi
- Bluetooth 4.0
- NMEA 2000®
GPSIntegrated (10 Hz, 28 channels, GPS/GLONASS/Galileo/Beidou)
Sonar: CHIRP, DownVision, SideVision, RealVision 3D
Radar compatibilityQuantum, Digital, HD Colour, Magnum
AISYes, via NMEA 2000
Autopilot supportEvolution autopilot
Water resistanceIPX6 / IPX7
Dimensions244 x 158 x 77 mm
Cal2.27 kg
