Original price was: 11 711,80 €.11 360,45 €Current price is: 11 360,45 €.

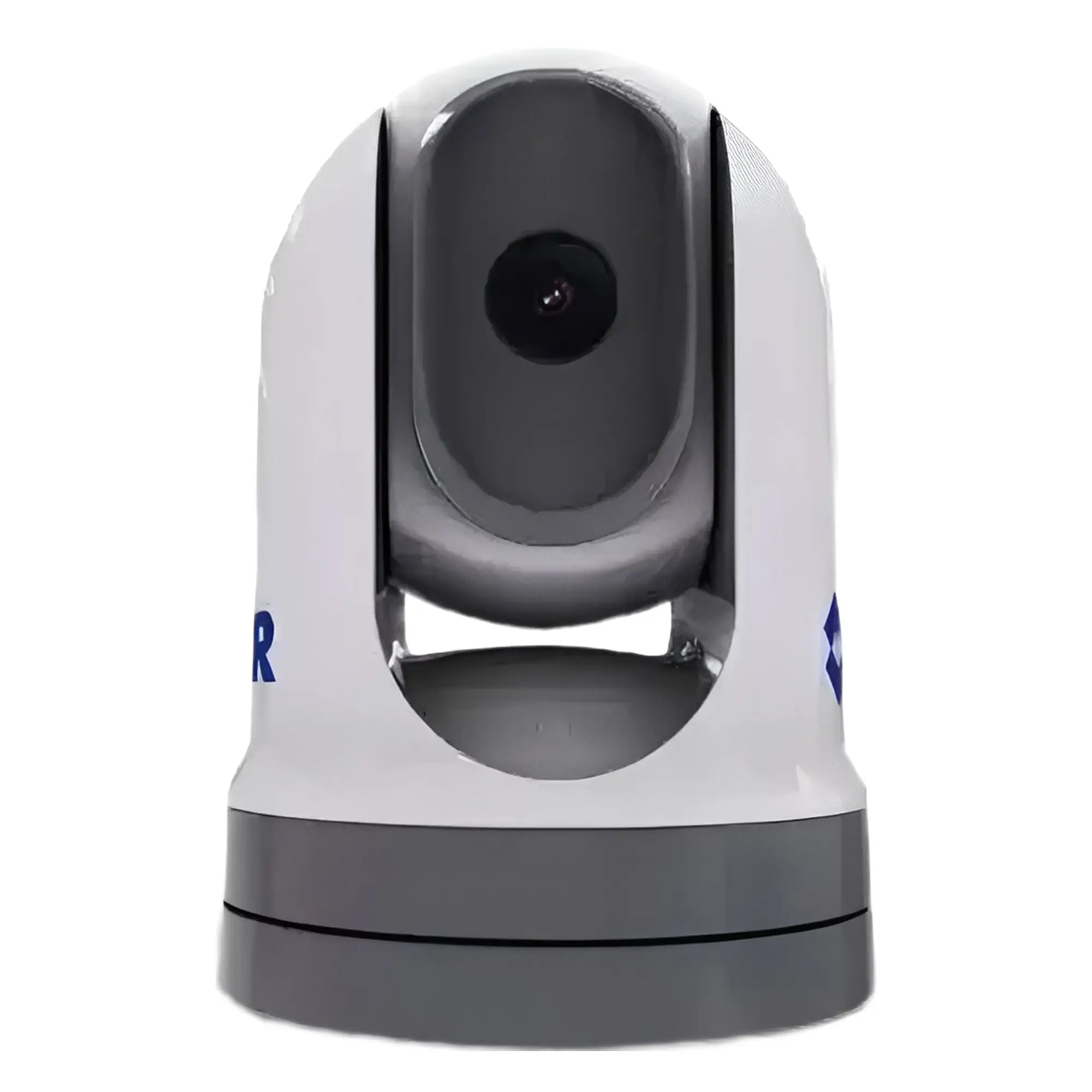

FLIR M332 Standard Thermal Camera with Picture-in-Picture (E70527). Combining a rugged, weatherproof casing with one of FLIR's most advanced thermal camera cores, the M332 offers excellent situational awareness and enhanced thermal observation for law enforcement, commercial, and recreational applications. Advanced gyrostabilization and high-performance thermal image processing detect obstacles and targets in complete darkness and rough seas, enabling safe navigation even in the most challenging conditions. The M332 thermal camera does not have optical zoom. Be sure to also check out this product instructions and in case of questions, consult our specialist.
Available on back-order
Get in touch with us!
For produce, 2-3 working days. In other cases, 7-14 working days. Ask for more information!
Product description
FLIR M332 Standard Image IP Thermal Camera (E70527). By combining a rugged, weatherproof housing with one of FLIR's most advanced thermal camera cores, the M332 offers excellent situational awareness and enhanced thermal imaging for law enforcement, commercial, and recreational applications. Advanced gyro-stabilisation and high-performance thermal image processing identify obstacles and targets in total darkness and rough seas, enabling safe navigation in the most challenging conditions. The M332 thermal camera does not feature optical zoom.
Features:
Combining the M332 with your Raymarine Axiom® offers the next level of performance with Raymarine ClearCruise™ Augmented Reality enhancements. ClearCruise AR makes navigating even safer by displaying AIS targets, chart objects and waypoints in addition to real-time, high-performance thermal imaging.
Specification:
| Detector type: 320 x 256 VOx microbolometer |
| Field of View: 24° x 18° |
| Image Processing: FLIR Proprietary Digital Detail Enhancement |
| HD-SDI glitch-free video output: Yes |
| Network video output: one H.264 network video stream |
| Pan and tilt adjustment range: 360° continuous panning, +/- 90° tilt |
| Pan/Tilt: Yes |
| Analogue Output: NTSC/PAL, user-configurable |
| Analogue connector types: BNC |
| Automatic window defroster: activated as standard |
| Electromagnetic interference: IEC60945 |
| Lightning protection: standard |
| Operating temperature range: -25°C to +55°C (-13°F to +131°F) |
| Marine equipment: IEC60945 |
| Angle: 15g vertical, 9g horizontal |
| Storage temperature range: -30°F to +158°F (-30°C to +70°C) |
| Vibration: IEC60945 |
| Water resistance: IPX6 (strong waves, powerful water jets) |
| Wind: 100 knots (115.2 mph) |
| Ingress of dust and sand: Mil-Std-810E or IP6X |
| Focus: Fixed 3 metres (12 feet) to infinity |
| Request e-zoom: 4x |
| Focal length – thermal: 9.1 mm |
| Video refresh rate – thermal: 30 Hz E70527 (9 Hz E70528) |
This is a specific product which, when used in systems other than Raymarine LightHouse II and LightHouse 3/4/5, requires at least elementary knowledge of computer networking, IP addresses, and how to configure these devices. If you already know that you will be using this product in systems other than the aforementioned Raymarine systems and are unsure whether you will be able to manage, please consult your IT specialist before purchasing. If success is questionable or seems too complex, it is wiser to refrain from purchasing this product. We do not provide computer or IT assistance. NB! Thermal cameras cannot be returned.
Instructions:
Download M332 and M364 datasheet.
Download M300 series thermal camera User and installation manual.
Look M332 thermal camera product description.
Register your new Raymarine product within 3 months
