Ocean Scout Pro II monocular thermal camera (18° FoV 30Hz)

FLIR Ocean Scout Pro II A thermal camera is the ideal solution for increasing safety and improving navigation at sea, at night, in fog and in poor visibility. The human detection range is 1000 metres, which is twice as far as a standard Ocean Scout Pro camera. The compact monocular thermal camera has been specially developed for marine use, allowing for the rapid identification of people, navigation markers, floating objects and obstacles in the water.

Thanks to FLIR's cutting-edge thermal imaging technology and 18° field of view, the Ocean Scout Pro 2 offers maximum situational awareness and reliable target detection, even in demanding conditions.

This thermal camera with a high-resolution 640 × 480 VOx thermal sensor and a fast 30 Hz refresh rate provides sharp real-time images. People or heat sources can be detected up to 1000 metres away – making it ideal for night driving, all types of night observation, or human-related search and rescue operations.

The IP67-rated robust design reliably protects the camera from moisture, water and salt spray, and harsh weather conditions. At the same time, the ergonomic one-handed operation with intuitive 4-button layout ensures simple and quick use, even in high-pressure situations or challenging conditions.
Thanks to the integrated Wi-Fi connection and the FLIR Scout Pro app, real-time images can be transmitted directly to an iOS device, and images and videos can be easily saved and shared. Four different colour palettes allow for optimal display of thermal images in various weather and lighting conditions. The device's battery lasts up to 6 hours, making the Ocean Scout Pro II a reliable companion for long trips and marine adventures.

Toote omadused

Portable thermal camera for ships, yachts, and offshore operations
High-resolution 640 × 480 thermal sensor
Identification of people and objects up to 1,000 m

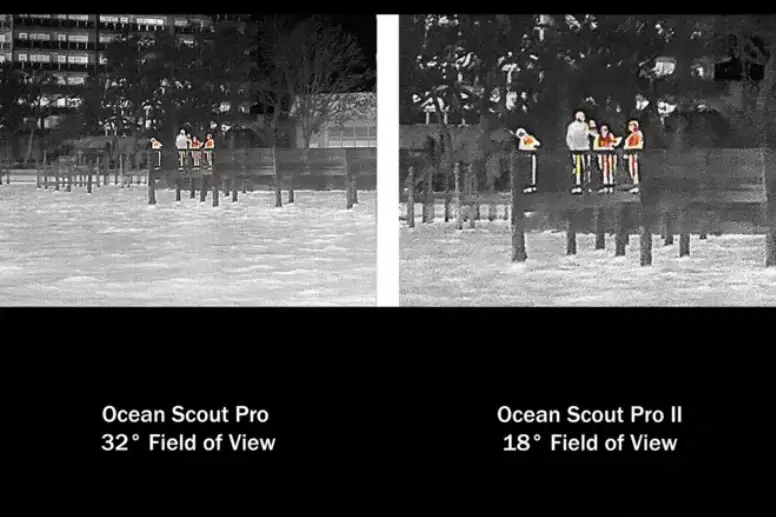

18° field of view for quick area identification
Ideal at night, in fog and in poor visibility
Durable IP67 casing for marine use
Ergonomically designed for simple one-handed operation
WLAN streaming and image transmission via the FLIR Scout Pro app
Four colour modes for optimal thermal imaging
Battery life of up to 6 hours

Technical data

Field of View (FOV)	18°
Focal length	35 mm
Aperture value	F / 1.0
Focus:	Focus: Manual focus
Detection range	1000 m
Minimum focal length	2 m
Picture refresh rate	30 Hz
Image frequency	60 Hz
Spectral range	7.5 µm to 13.5 µm
Pixel step	17 μm
Thermal Sensitivity, NETD:	at a temperature of 38 mK, 30 °C (86 °F).
Element resolution	640 × 480, VOx microbolometer
Picture editing	FLIR's digital detail enhancement™.
Tear calculation	2 m
IP protection class	IP67
