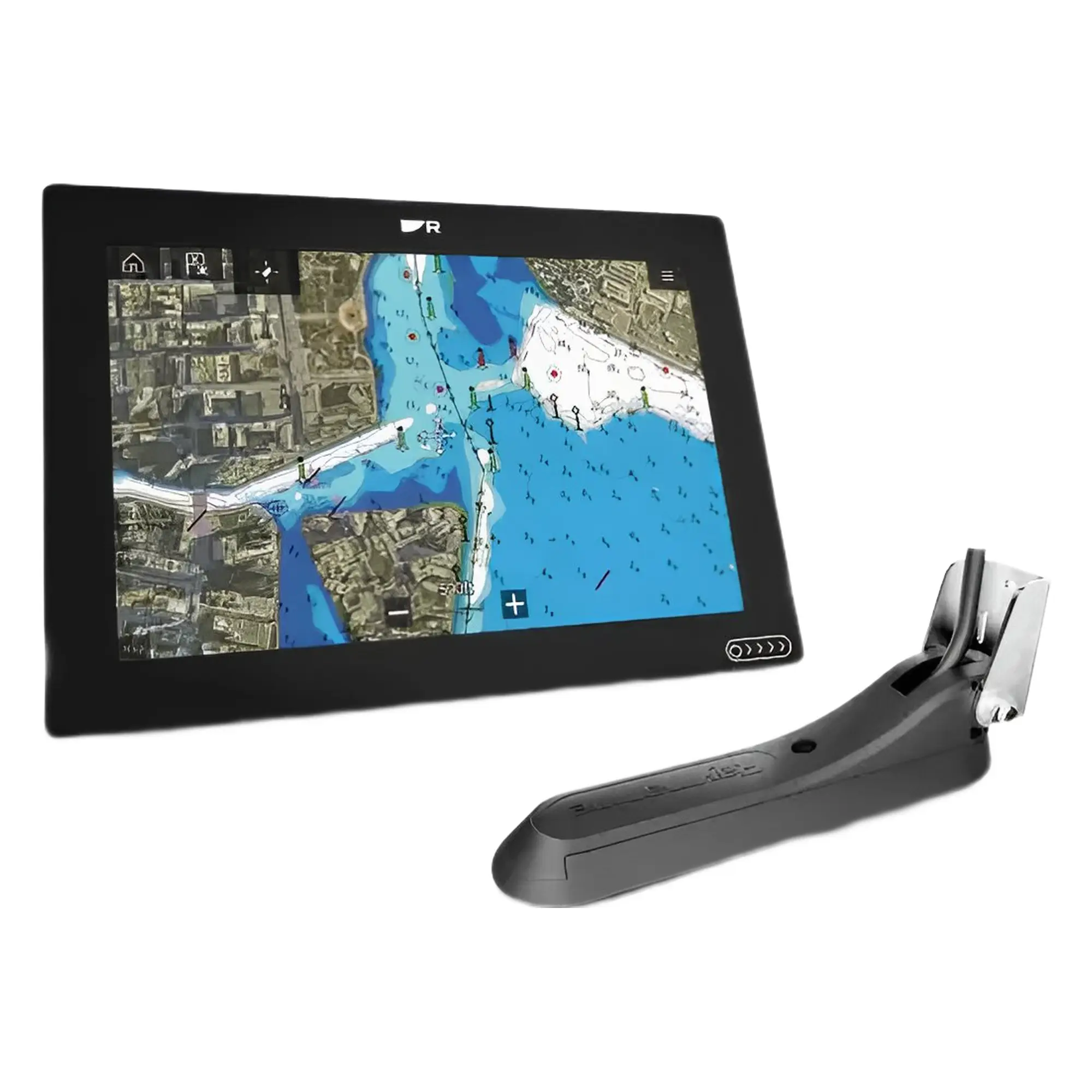

Axiom+ 12 RV chartplotter and RV-100 transom transducer

RAYMARINE AXIOM+ Chartplotter and Fishfinder

HydroTough™ screen, more memory, faster processor

The Raymarine AXIOM+ series is equipped with the advanced Lighthouse Dartmouth operating system and a super-fast quad-core processor, ensuring exceptional performance. With significant internal memory and expansion capabilities, the device's functionality can grow as needed.

The new HydroTough™ display is significantly brighter and offers better accuracy than previous models' displays, allowing for quick and precise use in all weather conditions.

HydroTough™ Screen

The AXIOM+ series HydroTough™ IPS LCD screen on the 25% is brighter than previous models. It also offers improved impact resistance and, thanks to its nano-coating, repels water and dirt, ensuring a clean screen that operates accurately and quickly even in the harshest conditions.

Swift Performance One Touch

Clear application icons make navigation simple and quick. A simple swipe across the screen activates the sidebar to display data. The “drag and drop” function allows data points to be positioned on the screen in various sizes as needed. Personalised settings and user profiles are saved to the device to ensure quick access. With a simple touch, you can take full control of your device.

Chartplotters can be customised to individual preferences. The menus are easy to navigate and all essential chart viewing modes are easily accessible.

The new LightHouse Dartmouth Operating System

With the new Raymarine LightHouse Dartmouth operating system, you can select different colour palettes to achieve the best view during the day and night. Additionally, there are several enhancements to the dashboard view, so you can always quickly get an overview of all important data.

Networking and Connectivity

AXIOM+ seadmed on varustatud NMEA 2000 ja Ethernet (RayNet) liidestega. Seadmed sisaldavad ka mikro-USB porti, sisseehitatud WiFi ja Bluetoothi.

Top Cards

Raymarine's multifunction displays offer a choice of Navionics, C-Map, and expanded Lighthouse charts. Detailed grid and vector charting make coastal navigation easy, with the added benefit of 3D charts and satellite support.

Integrated RealVision 3D Sonar Module

The integrated RealVision 3D sonar combines CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP and RealVision 3D into one unit. Easily discover underwater structures and locate fish thanks to the lifelike clarity offered by RealVision 3D sonar. Wide CHIRP frequency coverage transmits 60 different frequencies to ensure lifelike sonar images and a premium fishing experience. Suitable RV-100 transom sensors are included.

Axiom Wireless Screen Streaming

Stream a picture of your Axiom or Axiom Pro MFD screen to any onboard TV, monitor, or display. Axiom wirelessly transmits its screen image to a smart TV or a Miracast dongle connected to the TV's HDMI port. Any display with an HDMI port and Miracast dongle can act as an additional Axiom chartplotter screen. Monitor your navigation from the saloon or cabin. Add to your system an additional RMK-10 connector or a Bluetooth mouse, and you can control your Axiom chartplotter without leaving your TV location!

FUSION Marine Audio System Control

The Raymarine integrated audio app controls popular FUSION and Rockford Fosgate audio equipment via a standard NMEA 2000 network.

Technical Details:

Screen size: 12″
Resolution: 1280 x 800
Screen type: Multitouch, HydroTough (durable coating)
Brightness: 1500 nits
Viewing angle: 85° (up, down, left, right)
Voltage: 12 V DC (8 – 16 V DC)
Energy requirement: 19.96 W
Ethernet: Yes, 1x port (RayNet)
Yes, 1x port (Micro C)
NMEA 0183: No
SeaTalkNG: Required adapter cable (included)
USB: 1x Micro USB AB
WiFi: Yes
Bluetooth: Yes, 4.0
GPS: Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar: Integrated
sonar types: High CHIRP, DownVision, SideVision and RealVision 3D
Solder connection: 25-pin
Radar: Compatible with Quantum, Digital, HD Colour/Super HD Colour and Magnum Radar aerials
AIS: Yes, via NMEA 2000
Chart Compatibility: Navionics, C-MAP, and Lighthouse
Card slot: 1x
Autopilot control: Evolution autopilot
Thermal Cameras: FLIR AX8, M232, M300 Series, M400, M500
Video/camera: Compatible CAM210IP and CAM220IP (up to 10 cameras)
Operating temperature: -25 to +55°C
Storage temperature: -30 to +70 °C
Waterproof: IPX6 / IPX7
Dimensions: 244 x 158 x 77 mm
Weight: 2.72 kg
