Original price was: 2 845,80 €.2 445,00 €Current price is: 2 445,00 €.

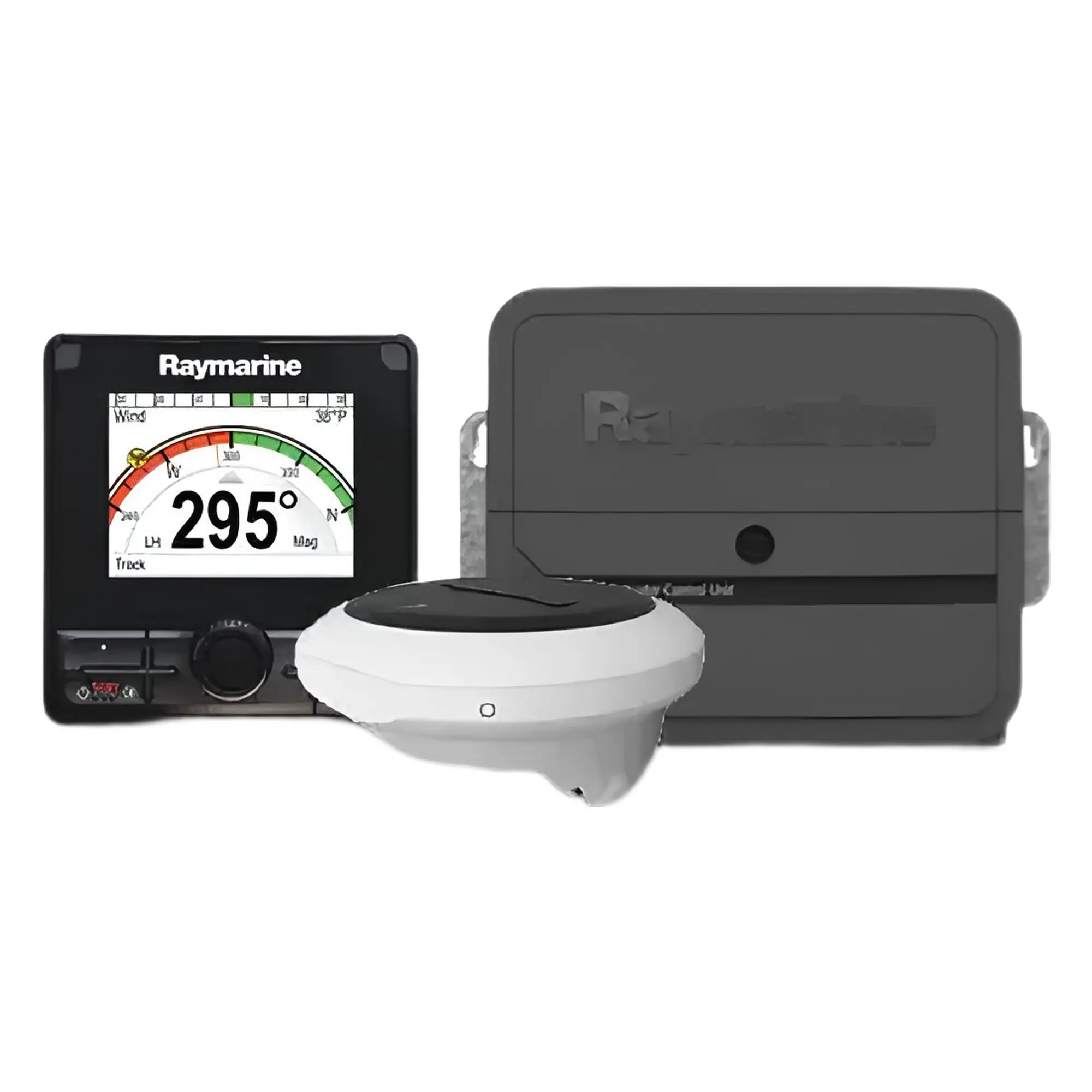

The EV-200 power autopilot with P70Rs control unit is designed for boats already fitted with a Type 1 drive. The kit includes the P70Rs control unit, EV-1 course computer, and ACU-200 (Type 1) drive control unit. The Evolution series course computers feature a nine-axis sensor with AST function. Evolution autopilots will function without a rudder feedback sensor, but we recommend adding one if possible. For Volvo-Penta sterndrives, a special mounting kit must be added to connect the rudder feedback sensor. The “Power” in the product description indicates that the kit includes the P70Rs control panel with a rotary knob, which is more convenient for use on motorboats. The ACU-200 itself can control any Type 1 drive. Be sure to also familiarise yourself with this kit. with instructions and in case of questions, consult our specialist.
Get in touch with us!
For produce, 2-3 working days. In other cases, 7-14 working days. Ask for more information!
Raymarine EV1 Sensor Core and Evolution Autopilot Components
EV1 Sensor Core
The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking allows a single cable connection for power and data to the Evolution ACU (Actuator Control Unit) and extended SeaTalkng and NMEA2000 networks.
ACU-200 (Actuator Control Unit)
The ACU-200 is a robust drive unit that ensures reliable autopilot operation and powers the SeaTalkng bus. This drive unit is designed to provide precise steering functions.
p70 / p70s Autopilot Control Unit (Sailing)
The p70 / p70s autopilot control unit is a button-operated device specifically designed for sailboats. Enhanced LED backlighting offers low power consumption, along with vivid colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be clearly seen even at acute angles.
The p70 / p70s control unit also includes the LightHouse user interface and a setup wizard to help quickly and easily configure the autopilot.
Type 1 Mechanical Linear Actuator (12V)
The Raymarine mechanical linear drive unit's design offers:
Strong thrust, fast and quiet working performance.
Low return force to minimise the helmsman's influence on the ship's steering system in autopilot stand-by mode.
A powerful electric motor, driven by an electromagnetic safety arm system, using a high-voltage treated belt transmission and an epicyclic gearbox.
High performance with low power consumption.
Evolution Cable Kit – R70160
The Evolution SeaTalkng cabling kit includes:
1 x SeaTalkng Power Cable (0.4m)
1 x SeaTalkng Backbone Cable (5m)
1 x SeaTalkng Spur Cable (0.4m)
1 x SeaTalkng 5-way Connector Block
2 x SeaTalkng T-piece Connector
2 x SeaTalkng Terminator
Download the EV-200 autopilot installation manuals:
EV1 and ACU Installation guide
Linear actuator Installation guide
Autopilot pump Installation guide
p70s and p70Rs Installation guide
Steering angle sensor Installation guide
Special tools are required for Volvo-Penta D4 and D6. Installation kit.
Evolution p70 and p70Rs pilot user and operating manual
Look at Raymarine autopilots product description.
Registered Raymarine products have a 3-year warranty
