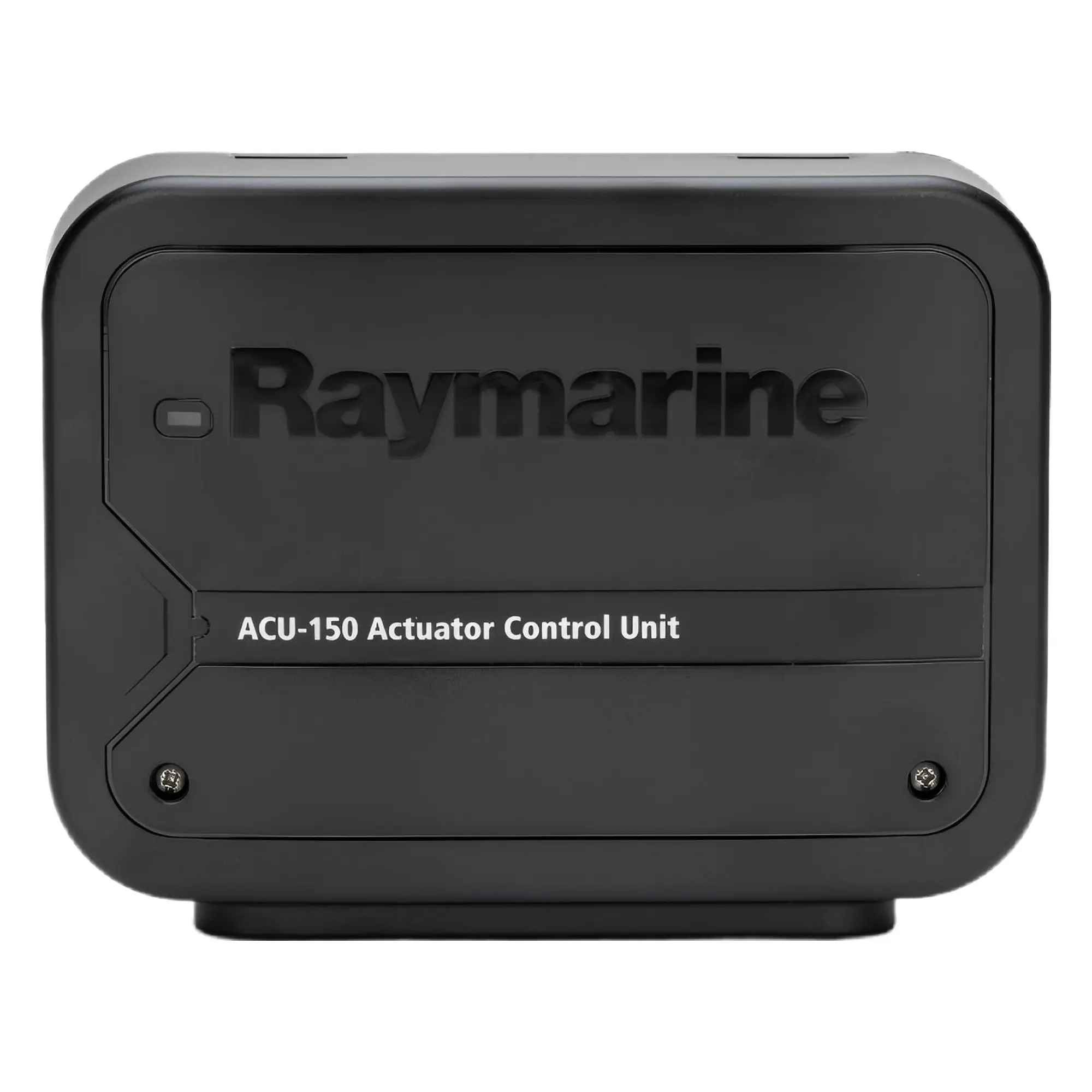

Raymarine ACU-150 Autopilot Actuator Control Unit

Raymarine ACU-150 Autopilot Actuator Control Unit (No clutch, for Type 1 12V drives only)

ACU-150 Raymarine ACU-150 is a component of the Evolution™ autopilot system and is designed for the Raymarine Type 1 hydraulic drive. (M81120) for. The ACU150 has no clutch output and the sailing boat Type-1 linear actuator This cannot be used for control. The ACU-150 connects to the SeaTalkng network, and a separate autopilot computer is needed for autopilot operation. EV1 and P70 or p70Rs dashboard Axiom series chartplotter. The ACU-150 has the option to connect a rudder angle sensor and it is reasonable M81105 add tansducer. The ACU-150 only functions on 12-volt DC systems and does not supply power to the STNG network. Be sure to also consult the instructions for this kit, and if you have any questions, please contact our specialists.

Main features:

• Maximum continuous current: 12 A

• Output: None

• Steering angle sensor, power, drive motor, ground

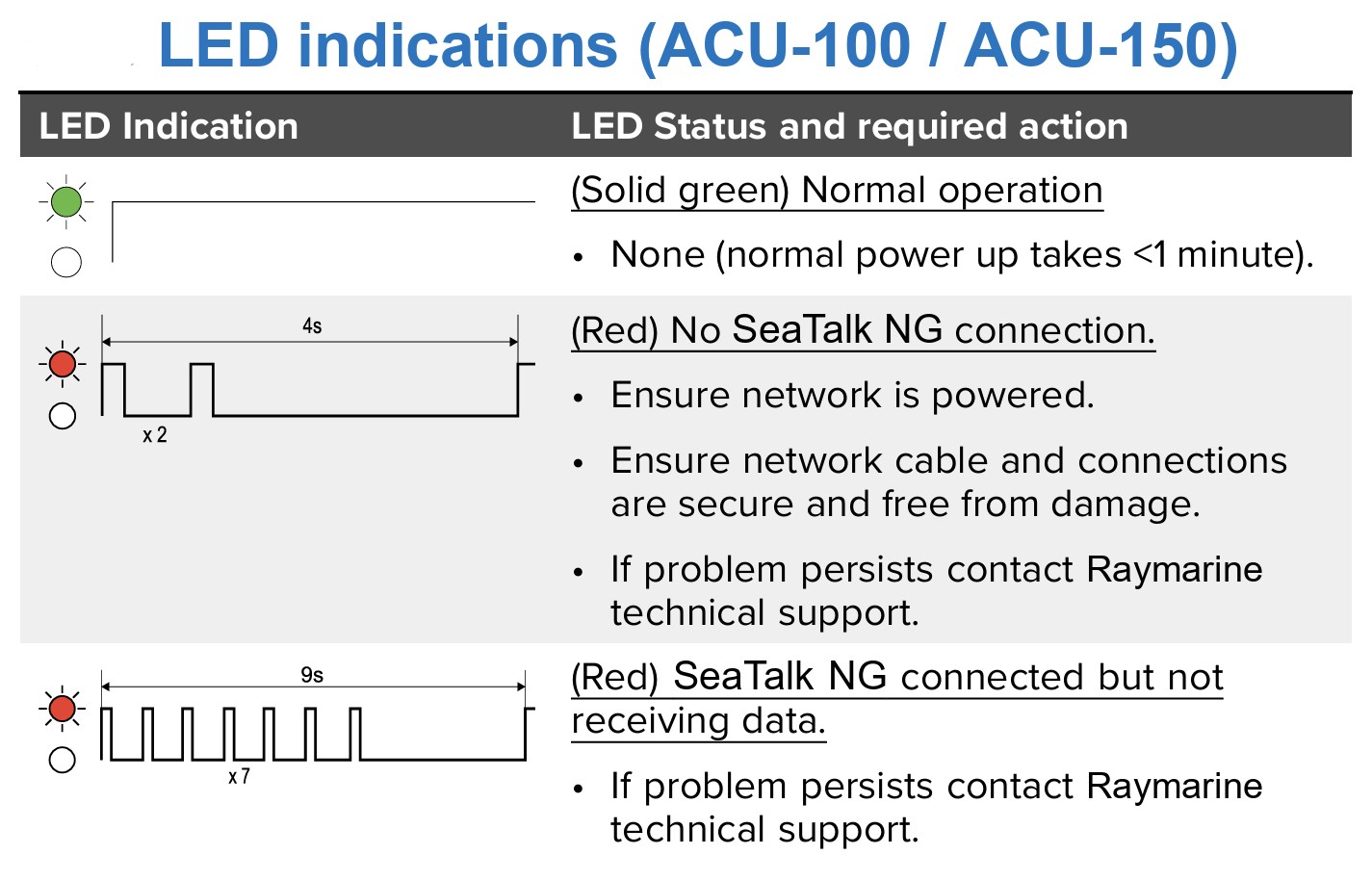

• SeaTalkNG communication: data transfer between system components

• Nominal operating voltage: 12V DC (range 10.8 V to 15.6 V)

• Water resistance rating: IPX6 (drive unit), IPX2 (connection panel)

• Operating temperature: -20°C to +55°C

• Dimensions: 180 x 140 x 52 mm

• Weight: 0.6 kg

Suitability for the role regarding the workshop cylinder sizes:

The ACU-150 is suitable for controlling hydraulic steering cylinders with a displacement ranging from 80cc to 230cc (Type 1 pump). To determine suitability, we recommend using the Raymarine steering cylinder compatibility chart or consulting an authorised dealer.

Download the Evolution autopilot installation manuals:

EV1 and ACU Installation guide

Autopilot pump Installation guide

p70s and p70Rs Installation guide

Steering angle sensor Installation guide

Evolution p70 and p70Rs pilot user and operating manual

Further information about autopilots can be found Raymarine from the website
