Raymarine ACU-100 Actuator Control Unit

Raymarine ACU-100 Actuator Control Unit (without clutch terminal, for Type 0.5 Drive)

The Raymarine ACU-100 is a robust actuator control unit designed to provide reliable autopilot control for smaller vessels utilising a clutchless Type 0.5 drive. This unit not only powers the autopilot with the necessary current but also ensures power for the SeaTalkng network. Its rugged construction and IPX6/IPX2 waterproofing make it ideal for installation either in the cabin or below deck.

The ACU-100 is an excellent choice for those looking for a simple, energy-efficient, and reliable solution to upgrade their autopilot system.

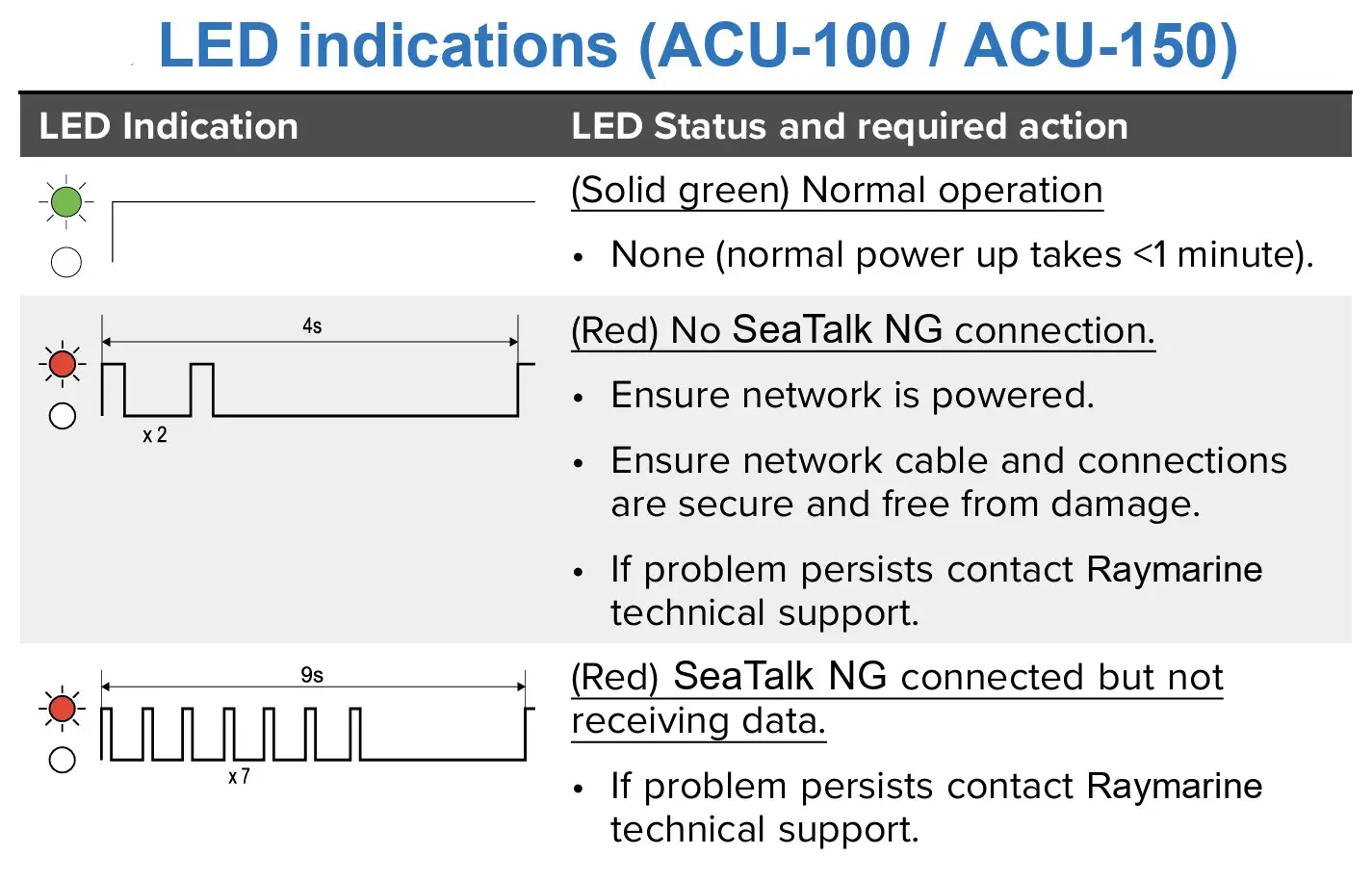

Main features:

• Max. current rating: 7 A

• Connection: none (suitable for systems without a clutch)

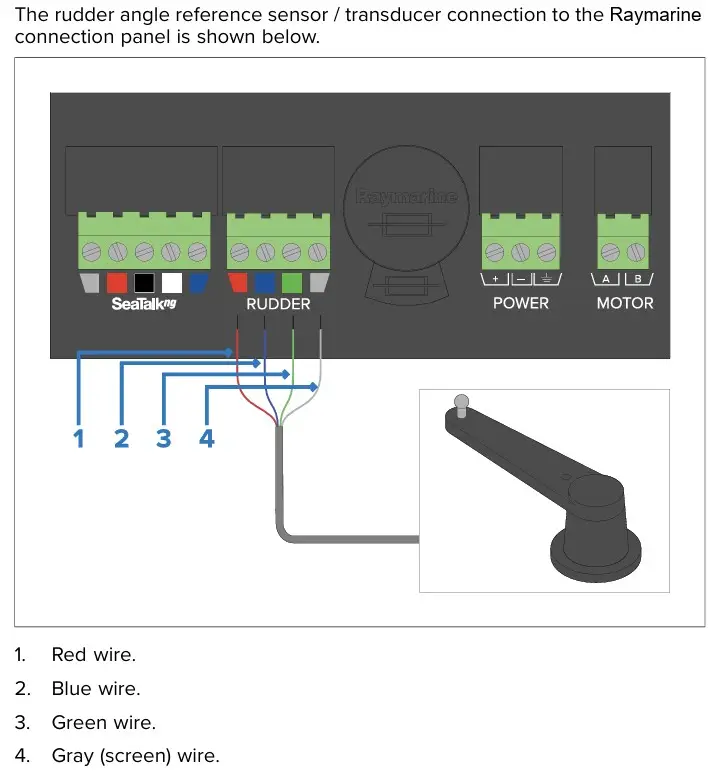

• Connections: for steering sensor, power, motor, and earth

• Nominal supply voltage: 12 V DC (operating voltage range 10.8 – 15.6 V)

• SeaTalkng data connection: Yes

• Water resistance: IPX2 (panel), IPX6 (electronics)

• Dimensions: 180 x 140 x 52 mm

• Weight: 0.6 kg

Installation environment

• Operating temperature: -20°C to +55°C

• Storage temperature: -30°C to +70°C

• Relative humidity: up to 93%

Suitability Ideally suited for smaller vessels that use a Type 0.5 drive unit and do not require a clutch. Check your steering cylinder compatibility with the Raymarine compatibility chart or consult an authorised dealer for advice.

Download the Evolution autopilot installation manuals:

EV1 and ACU Installation guide

Autopilot pump Installation guide

p70s and p70Rs Installation guide

Steering angle sensor Installation guide

Evolution p70 and p70Rs pilot user and operating manual
