STNG to SeaTalk1 Converter for Easy Connections

The Raymarine SeaTalk1/SeaTalkng converter allows SeaTalk1 devices to communicate with a SeaTalkng network. It is compatible with ST40, ST60+, Raystar 125 GPS, autopilots, and LifeTag MOB systems. SeaTalk ¹ SeaTalk ^No The converter is a practical solution for creating bidirectional network connections.

Key features

Simple „plug-and-play“ connection to SeaTalk ng ^-ing
Works SeaTalk ¹ instruments, GPS aerials, autopilots and other equipment.
SeaTalkng ^No The components included allow basic connection to the instrument system.
Easy system expansion Raymarine SeaTalk ^No with accessories

In the catalogue are:

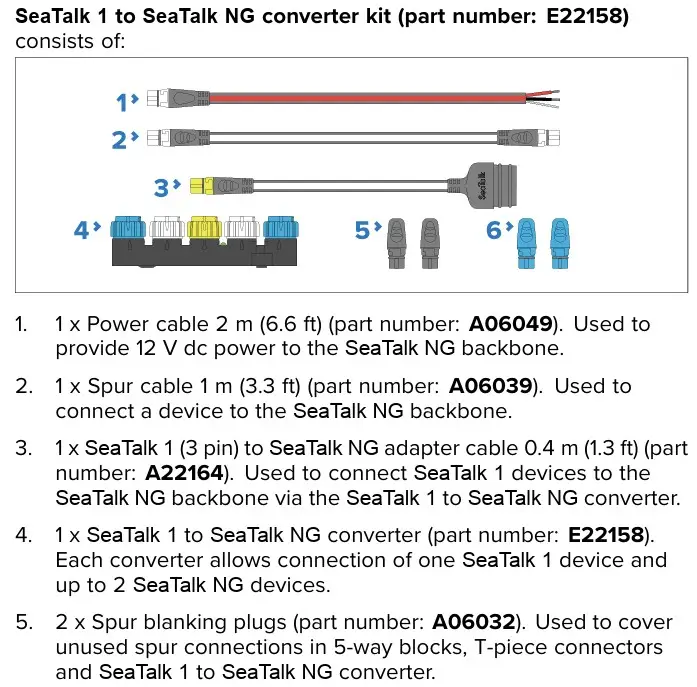

The kit includes all SeaTalk ¹ SeaTalk instruments ^No essential components for connecting to the system, including:

SeaTalk ¹ SeaTalk ^No Converter
SeaTalk ^No Terminators (2)
SeaTalk protective caps ^No (x2)
400mm SeaTalk cable ¹ SeaTalk ^No
SeaTalk ^No power cable
1 m SeaTalk ^No Harukaabel

This product is also well suited ST1000+ and ST2000+ to integrate the pinnipiloodi with a new STNG (NMEA2000) network.

SeaTakl1 is also available 3-Way Junction box SeaTalkl1 cable.

All Raymarine SeaTalk NG cables and connectors are colour-coded:

The blue socket of the connector is suitable for a blue/black cable, which is the BackBone, also known as the trunk cable. The white socket of the connector is suitable for a white/black cable, which is the SPUR, also known as the drop cable (or drop trunk cable). The wrong cable will not fit into the wrong socket. When preparing for installation, make a plan so that a BackBone cable of suitable length runs through everywhere where STNG (NMEA2000) devices are to be installed. Leave a break in important locations where a T-connector or a 5-way connector can be installed, and no instrument connected via a drop cable to a connector on the BackBone should be more than 5m away.

Instructions:

Download STNG Network General Guide

Download STNG to SeaTalk1 converter guide
